Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

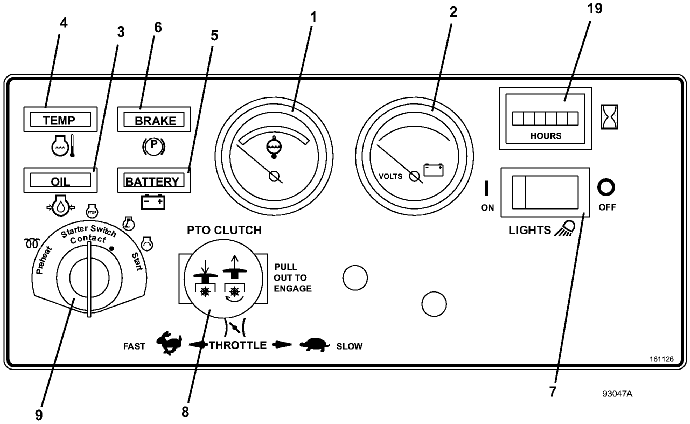

930D2 • Console Diagram

2009

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Zoned Electric Temperature Gauge

141160

-

Gauge Back Light Lamp

182247

2

Voltmeter Gauge

141200

-

Gauge Back Light Lamp

182247

3

Oil Indicator Light

182327

4

Temperature Indicator Light

182328

5

Battery Indicator Light

182325

6

Brake Indicator Light

182326

7

Rocker Switch

184179

8

Push/Pull Switch

183925

9

Sealed Key Switch - Kubota

183827

-

Double Notch Ignition Key - Kubota

101106

19

Snap-In Hour Meter

141551

20

Console Decal

161123
