Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

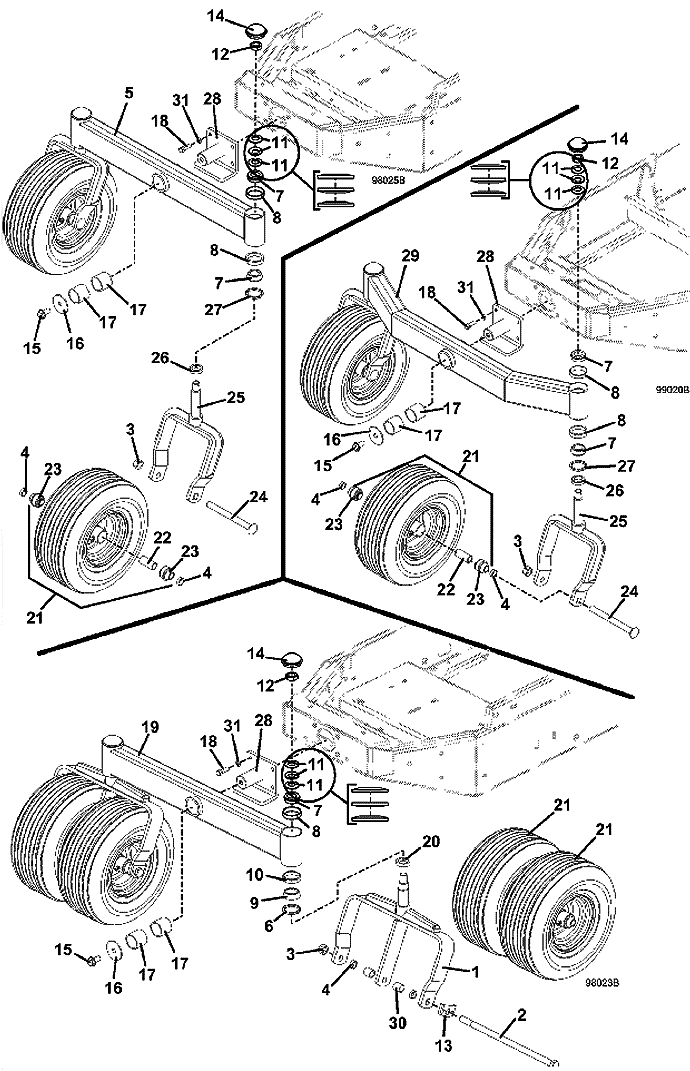

930D2 • Tail Wheel Options - 1

2009

Tail Wheel Options

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Dual Fork & Lock Nut Assy

604366

2

Hex Bolt

243922

3

Lock Nut

253970

4

Axle Spacer

902422

5

Dual Wheel Beam

824510

6

Seal

125855

7

Taper Bearing

122522

8

Bearing Cup

123522

9

Taper Bearing

122523

10

Bearing Cup

123521

11

Spring Washer

257320

12

Jam Nylon-Top Lock Nut

254505

13

Fork Bolt Lock

723008

14

Dust Cap

481434

15

Whiz Bolt

253243

16

Washer

257061

17

Reamed Oilite Bearing

833275

18

GR8 Hex Bolt

243334

19

Wide Dual Beam

824508

20

Spacer

830420

21

Rear Wheel Assembly with Bearing 13x6.5x6

603975

-

Ribbed Tire

482355

-

Wheel without Tire - Tan

483306

22

Center Rear Axle Spacer

902429

23

DP Wheel Ball Bearing

120048

24

Carriage Bolt

247725

25

Fork & Lock Nut Assembly

604365

26

Spacer

282615

27

Seal

125855

28

Rear Axle Tapped Pivot

643631

29

Offset Beam

824516

30

Axle Spacer

902425

31

Lock Washer

257412

return to 930D2 index return to top of page
