Genuine OEM Grasshopper® Mower Parts Diagrams

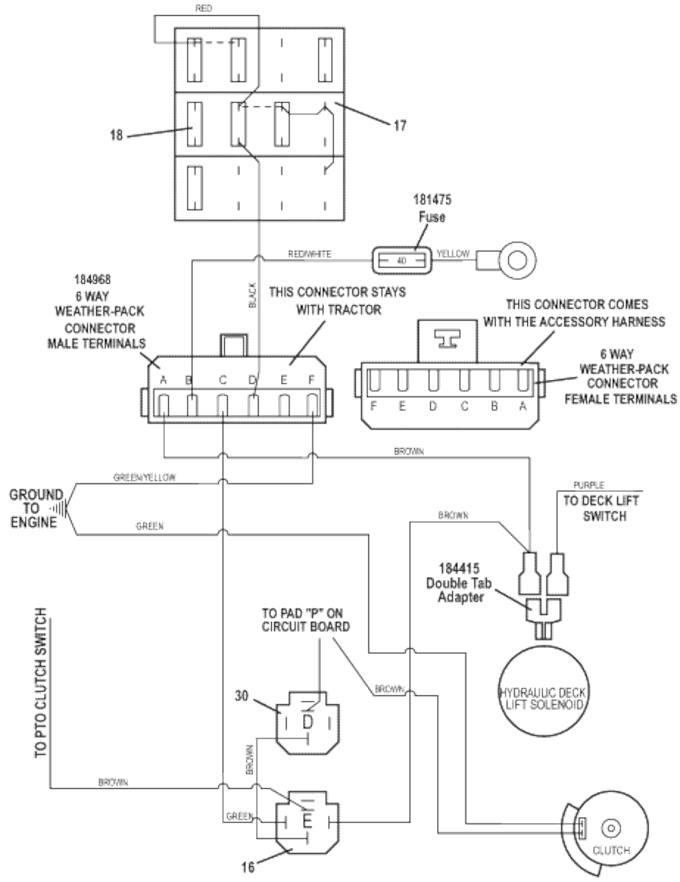

930D2 • Universal Wiring Harness Wiring Diagram (cont.) Serial #6311692 & Below
2013
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart, call toll-free 866-698-4070 for availability.
