Genuine OEM Grasshopper® Mower Parts Diagrams

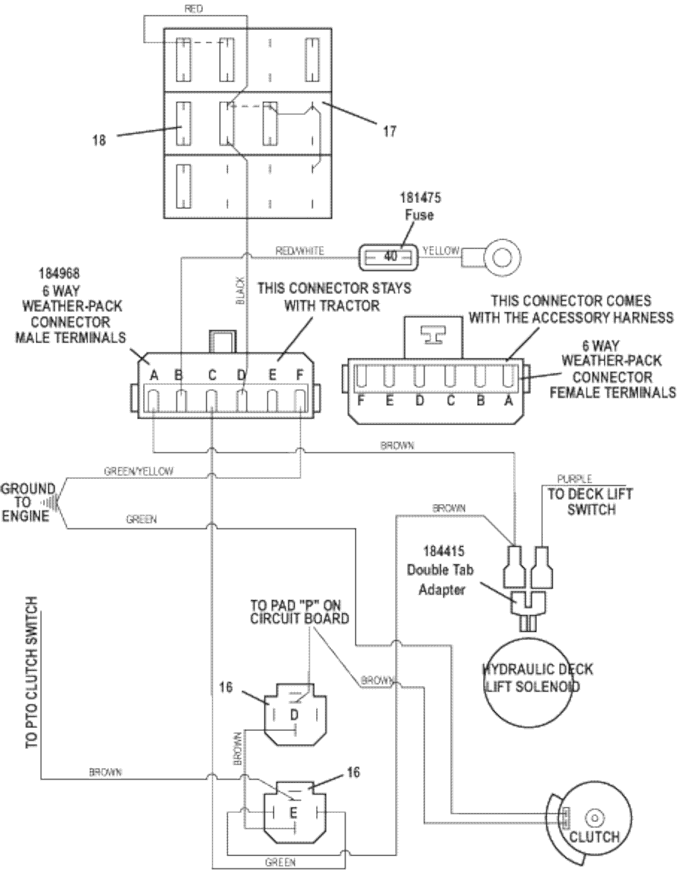

930D2 • Universal Wiring Harness Wiring Diagram (cont.) Serial #6312279 & Above
2013
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
16 |
12VDC Relay w/Diode |
184266 |
17 |
Fuse Block |
181722 |
- |
1 Wire Fuse Clip |
184458 |
- |
2 Wire Fuse Clip |
184460 |
- |
Double Clip Fuse Clip |
184472 |
18 |
30 ATC Auto Fuse |
181470 |
- |
7.50 ATC Auto Fuse |
181460 |
- |
10 ATC Auto Fuse |
181462 |
- |
15 ATC Auto Fuse |
181465 |
