1

Zoned Electric Temperature Gauge

141165

2

Voltmeter Gauge

141203

-

Light Bulb - NOT AVAILABLE

182007

3

Oil Indicator Light

182327

4

Temperature Indicator Light

182328

5

Battery Indicator Light

182325

6

Brake Indicator Light

182326

7

Rocker Switch

184179

8

Switch Push/Pull

183925

9

Switch Key Sealed - Kubota

183827

-

Kubota Double Notch Ignition Key

101106

10

Lever Switch

183860

-

Steering Switch Mount - right

720160

11

Lever Switch

183860

-

Steering Switch Mount - left

720161

12

Flood Worklamp - Halogen

182250

-

Light Bulb - Halogen

182245

13

Snap Mount Worklamp Bezel

182251

14

900 Series Worklamp Harness - NOT AVAILABLE

604895

15

Twist-in Seat Switch

183871

16

12V DC Relay

184272

17

Fuse Block

181722

-

1 Wire Fuse Clip

184458

-

2 Wire Fuse Clip

184460

-

Double Fuse Clip

184472

18

30 amp Auto ATC Fuse

181470

-

7.5 amp Auto ATC Fuse

181460

-

10 amp Auto ATC Fuse

181462

-

15 amp Auto ATC Fuse

181465

19

Snap-In Hour Meter

141551

20

Brake Interlock Switch

183894

21

12 Volt Side Post Wet Battery

180130

-

12V Side Post Dry Battery

180131

-

Hex Bolt

243309

22

14" Battery Cable - Red

180313

-

Red Alternator Terminal Boot

425215

-

Starter Terminal Boot

425219

-

Battery Terminal Boot

425223

23

20" Battery Cable - Black

180282

24

Interlock Switch Module

184220

25

Inline Auto Fuse Holder

181735

-

Auto ATC 30 Amp Fuse

181470

26

Temperature Sender

141224

27

PC Board Support Spacer

423690

28

Regulator Fuse Inline Holder

604880

-

Auto ATC 40 Amp Fuse

181475

29

Pigtail Cable Assembly

388840

30

12VDC Relay w/Diode

184266

31

12V Hydraulic Lift Solenoid Valve

144951

32

Power Components Tilt Switch

183710

33

Sealed Dome Switch

183940

-

Black Button Cup

183943

-

Momentary Toggle

183954

34

3Way Male WP Connector

184973

35

Tilt Switch Mount

722747

36

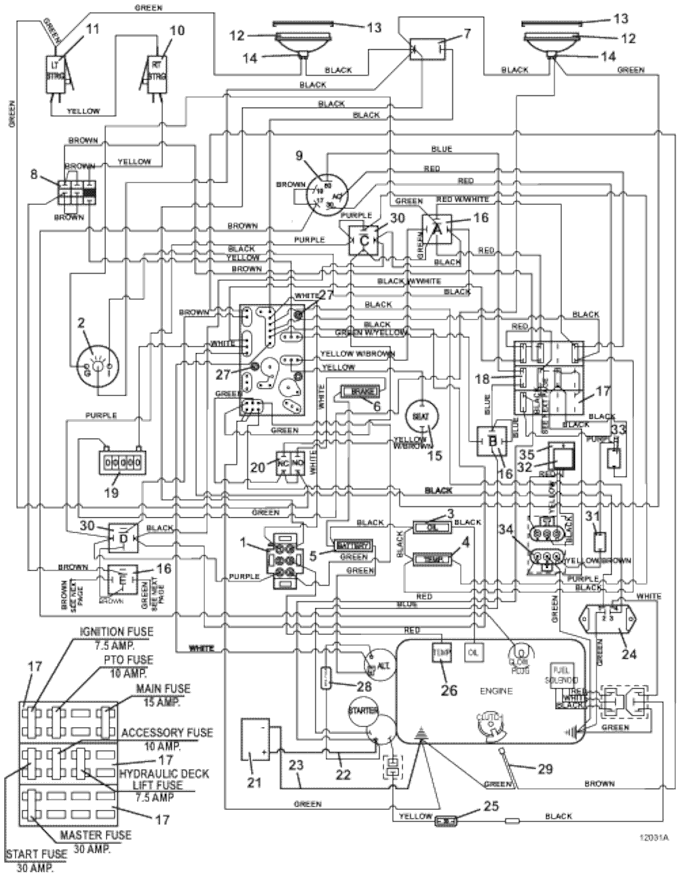

930D Wiring Assembly

605898
