Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

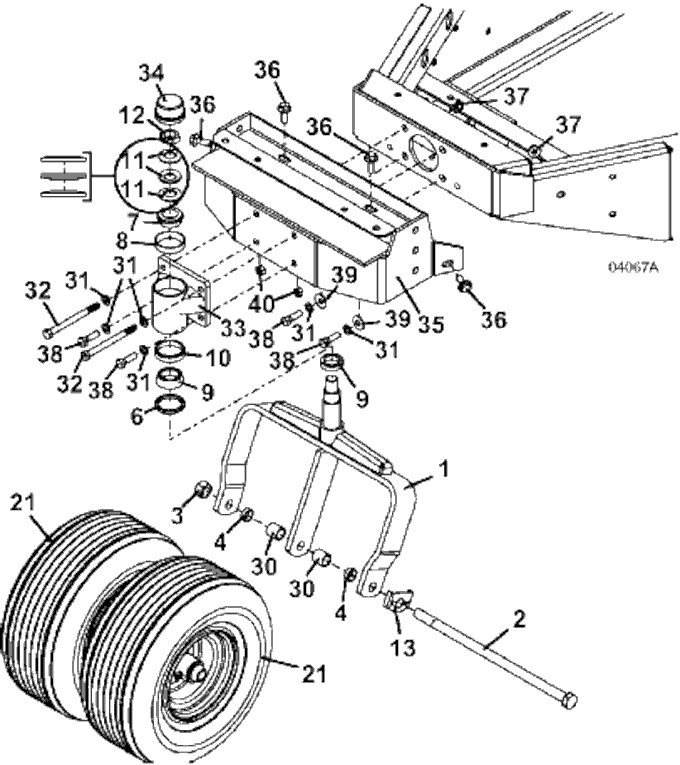

930D2 • Tail Wheel Options - 2

2014

Tail Wheel Options part 2

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Dual Fork & Lock Nut Assembly

604366

2

Hex Bolt

243922

3

Lock Nut

253970

4

Axle Spacer

902422

6

Seal

125855

7

Taper Bearing

122522

8

Bearing Cup

123522

9

Taper Bearing

122523

10

Bearing Cup

123521

11

Spring Washer

257320

12

Jam Nylon-Top Lock Nut

254505

13

Fork Bolt Lock

723008

21

Rear Wheel Assembly with Bearing 13x6.5x6

603975

-

Ribbed Tire

482355

-

Wheel without Tire - Tan

483306

30

Axle Spacer

902425

31

Lock Washer

257412

32

Hex Bolt

243393

33

Dual Fork Pivot Housing Assembly

604595

34

Dust Cap

481432

35

Dual Fork Extension Mount

644302

36

Flange Whiz Bolt

253203

37

Whiz Nut

253043

38

GR8 Hex Bolt

243334

39

Washer

257040

40

Nut

254450
