Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

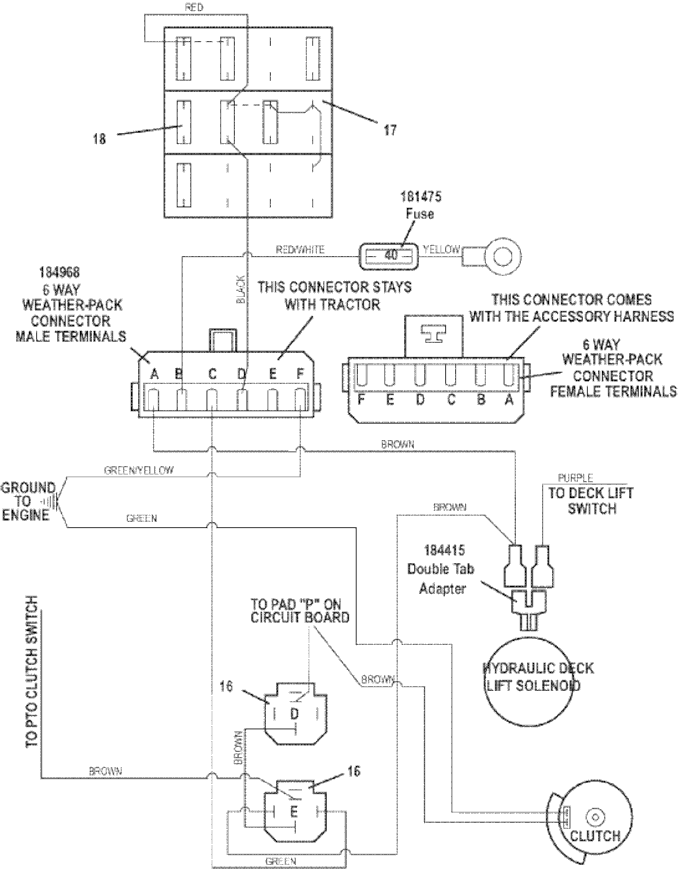

930D2 • Universal Wiring Harness Wiring Diagram (cont.)

2014

Universal Harness

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

16

12VDC Relay w/Diode

184266

17

Fuse Block

181722

-

1 Wire Fuse Clip

184458

-

2 Wire Fuse Clip

184460

-

Double Clip Fuse Clip

184472

18

30 ATC Auto Fuse

181470

-

7.50 ATC Auto Fuse

181460

-

10 ATC Auto Fuse

181462

-

15 ATC Auto Fuse

181465

Return to 930D2 Index Return to Top
