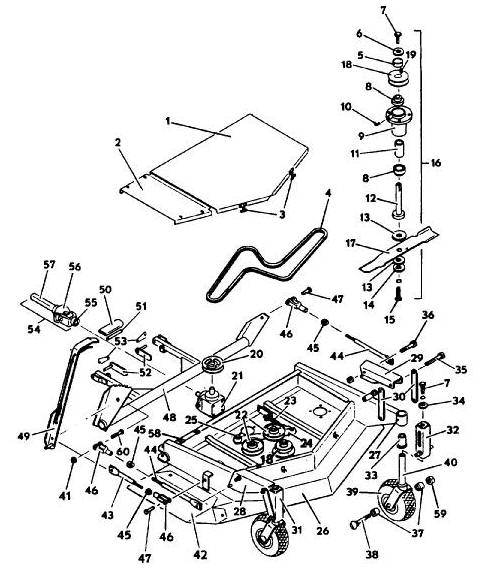

Item # |
Description |
Part Number |
1 |
SHIELD ASSY - 44 DECK |
603771 |
2 |
SHIELD - BELT RT 44 |
722270 |
3 |
LATCH RUBBER DRAW |
281301 |
4 |
BELT |
383000 |
5 |
SPACER |
282630 |
6 |
WASHER - CUPPED |
257041 |
7 |
HEX BOLT |
243331 |
8 |
BEARING - BALL W/O FL SEAL |
120081 |
9 |
SPINDLE HOUSING GREASE |
320526 |
10 |
FITTING GREASE |
280734 |
11 |
SPACER - BEARING TUBE |
903640 |
12 |
SPINDLE - BLADE STD |
603775 |
13 |
WASHER - FIBER |
421200 |
14 |
WASHER |
257061 |
15 |
HEX BOTL |
243581 |
16 |
BLADE SPINDLE ASSY (includes items 6-15) |
623785 |
17 |
BLADE -15 HI-LIFT NOTCH |
320234 |
- |
BLADE -15 MED LIFT |
320231 |
18 |
SHEAVE |
415826 |
19 |
KEY SQUARE |
281580 |
20 |
SHEAVE |
415875 |
21 |
GEARBOX RT ANGLE CW |
390020 |
- |
GEARBOX RT ANGLE CCW |
390021 |
22 |
IDLER |
393225 |
23 |
TENSIONER ASSY - 9 INCH |
603745 |
- |
SPRING - COMPRESSION |
283322 |
- |
HEX BOLT |
243290 |
- |
YOKE CLEVIS |
265537 |
- |
MOUNT - SPRING |
643574 |
- |
CLEVIS PIN |
261284 |
24 |
ARM - IDLER W/BRG 44 |
603070 |
|
NYLON BEARING |
422585 |
25 |
BOLT SHOULDER |
259745 |
26 |
DECK - 44 MOWER W/LIFT |
643261 |
27 |
FITTING GREASE |
280777 |
28 |
LIFT CHANNEL - RT |
643532 |
29 |
LIFT CHANNEL - LT |
643533 |
30 |
STRAP - LINKAGE |
782888 |
31 |
FORK HOUSING ASSY RT |
603420 |
32 |
FORK HOUSING ASSY LT |
603421 |
|
BEARING - REAMED OILITE |
833255 |
33 |
BUSHING - FLANGED SINTERED |
833260 |
34 |
WASHER |
774020 |
35 |
HEX BOLT |
243610 |
36 |
HEX BOLT |
243600 |
37 |
SPACER - AXLE |
902415 |
38 |
CARRIAGE BOLT |
247715 |
39 |
WHEEL ASSY - 4 - SEMI-PNEU |
603971 |
|
WHEEL - 4 |
483205 |
|
TIRE - TRACTION - 4 |
482310 |
|
TUBE - 4 |
482810 |
|
BEARING - BALL |
120050 |
|
SPACER - DECK WHEEL BRG |
902472 |
40 |
FORK - DECK LIFT |
643361 |
41 |
NUT LOCK |
253930 |
42 |
SHIELD - DISCHARGE 44 |
722325 |
43 |
LINKAGE - LIFT LEVER |
603562 |
44 |
ROD ASSY - 44 LIFT DECK |
326020 |
45 |
NUT |
254470 |
46 |
YOKE CLEVIS |
265555 |
47 |
CLEVIS PIN |
261426 |
48 |
EXTENSION BRKT-DUAL REAR WHEEL |
643325 |
48 |
LIFT ARM - 44 MOWER |
643525 |
49 |
LEVER KIT - DECK LIFT |
503310 |
50 |
GRIP HANDLE |
422155 |
51 |
GRIP HANDLE |
422157 |
52 |
PIN - ATTACHING |
643625 |
53 |
SAFETY PIN |
261848 |
54 |
UN HALF SHAFT |
398515 |
55 |
YOKE |
401010 |
56 |
CROSS & BEARING |
121010 |
57 |
YOKE & SHAFT |
402605 |
58 |
NUT |
254431 |
59 |
NUT LOCK |
253970 |
60 |
HEX BOLT |
243580 |
