Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

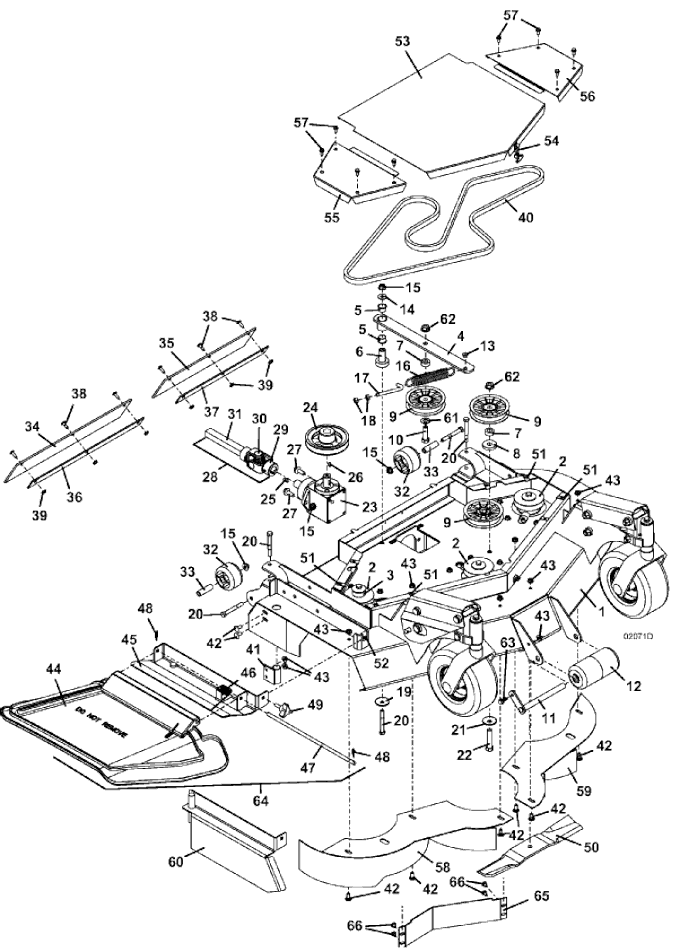

3344 Deck • Mower Assembly

2009

Mower Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1 3344 Deck Weldment 644166
2 SHEAVE 414675
3 SPACER 282630
4 IDLER ARM -3344 F/A 824480
5 BEARING - OILITE 121756
6 BEARING PEDESTAL 121650
7 SPACER 902313
8 WASHER 883804
9 IDLER 393225
10 HEX BOLT 243575
11 Roller Lock Pin 644512
12 2 Piece Center Roller Assembly 603725
13 NYLON BEARING 422520
14 WASHER 257040
15 NUT - WHIZ 253043
16 SPRING - EXTENSION 283848
17 J BOLT - IDLER ADJUSTMENT 730391
18 NUT 254450
19 WASHER - CUPPED 257041
20 HEX BOLT 243365
21 WASHER 257059
22 HEX BOLT 243590
23 GEARBOX - RT ANGLE CCW 390021
24 SHEAVE 415874
25 KEY WOODRUFF 281828
26 KEY WOODRUFF 281833
27 BOLT WHIZ FLANGE 253203
28 UN HALF SHAFT 398525
29 YOKE 401010
30 CROSS & BEARING 121010
31 YOKE & SHAFT 402605
32 ROLLER 426122
33 SPACER - ROLLER MOUNT 902284
34 FLAP - DECK - 3344 RT 424173
35 FLAP - DECK - 3344 LT 424174
36 STRAP - DEFLECTOR 3344 RT 774227
37 STRAP - DEFLECTOR 3344 LT 774228
38 Phillip's Head Truss Whiz Bolt 253179
39 NUT - WHIZ 253025
40 BELT 383012
41 MOUNT - PIVOT VAC HOUSING 643632
42 CARRIAGE BOLT 247130
43 NUT - WHIZ 253035
44 SHIELD - FLEX DISCHARGE 422042
45 MOUNT - DISCHARGE SHIELD 33S 644567
46 SPRING - TORSION 284406
47 PIN - FLEX DISCHARGE SHIELD 780650
48 RING COTTER 260608
49 STUD  - 3 PRONG HD - DECK 252821
50 BLADE - 15 HI-LIFT NOTCH 320234
  BLADE -15 MED LIFT 320231
  BLADE -15 CONTOUR 320233
  15" High-Low Mulching Blade 320235
  15" Extreme High-Lift Blade 320248
51 NUT SPEED 254431
52 NUT - SPEED ZP 254448
53 SHIELD - ASSY 3344 CENTER 604747
54 LATCH RUBBER DRAW 281300
55 SHIELD - BELT 3344 RIGHT 722498
56 SHIELD - BELT 3344 LEFT 722499
57 Hex Whiz Bolt 253175
58 MULCH PLATE - 3344 RT 644605
59 3344 Left Mulch Plate 644606
60 END CAP - MULCH 3344/48 644175
61 WASHER 257062
62 NUT - FLANGE SPIRAL LOC 253067
63 BOLT WHIZ HEX FLANGE 253192
64 DISCHARGE FLEX SHIELD ASSEMBLY 3344/48 604318
65 3344 Aux Front Shroud 724516
66 Truss Whiz Bolt 253176
67 33 Series Deck Decal Set 603279
