Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

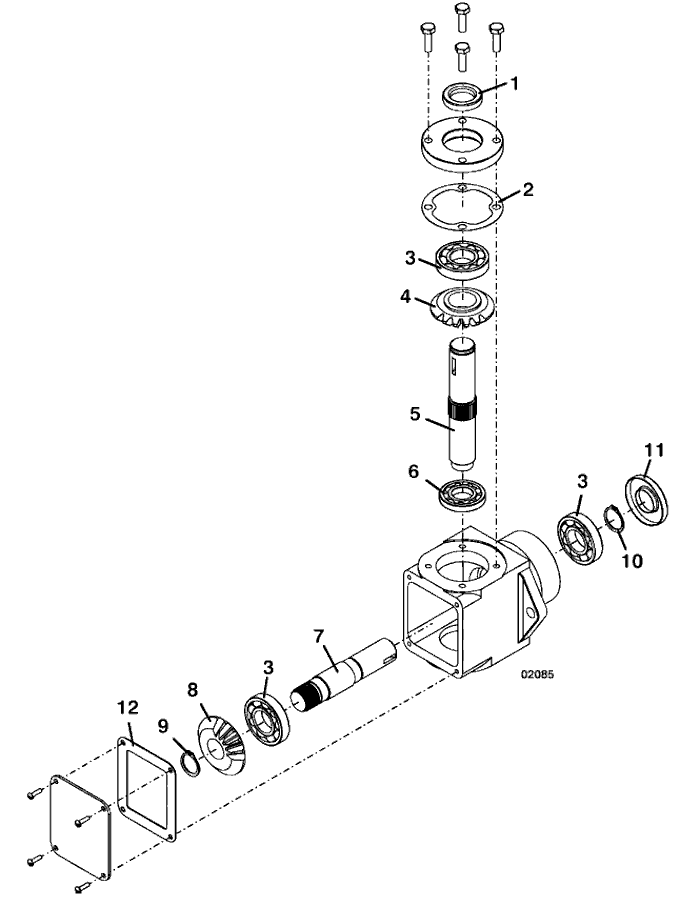

3344 Deck • Right Angle Gearbox

2014

Right Angle Gearbox

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1 Seal 125336
2 Gearbox Cap Gasket 420201
3 Ball Bearing 120071
4 Bevel Gear 8 Pitch .995 392501
5 1" Shaft 393517
6 Ball Bearing 120065
7 Shaft .875 393513
8 Bevel Gear 8 Pitch .865 392500
9 External Retainer 263530
10 External Retainer 263540
11 Seal 125339
12 Gearbox Cover Gasket 420200
