3344 Deck • Lift Arm & Linkage Assembly

2015

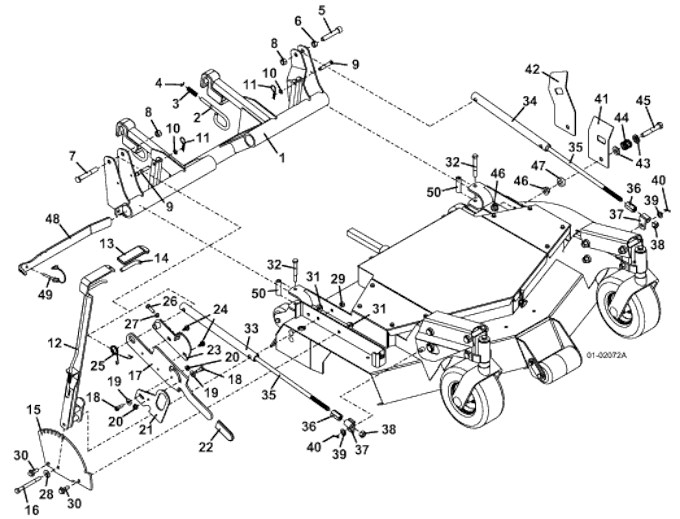

Lift Arm and Linkage Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1 3344 Lift Arm Assembly 604543
  3348 Lift Arm Assembly 604546
2 Deck Mount Latch Pin 730433
3 Compression Spring 283285
4 External Retainer 263490
5 Socket Head Screw 259640
6 Actuator Stop Spacer 902282
7 Hex Bolt 243609
8 Lock Nut 253930
9 Clevis Pin 261362
10 Push-On Retainer 262950
11 Hair Pin 260523
12 33 Series Deck Lift Lever 644475
13 Handle Grip 422155
14 Handle Grip 422158
15 Lever Mount L48 726037
- Cutting Height Decal 33/34 Series 162188
16 Hex Bolt 243385
17 33 Series Lift Connecting Arm 824174
18 Shoulder Bolt 259722
19 Washer 257030
20 Whiz Nut 253035
21 Latch Connecting Arm L48 783063
22 Black Handle Grip 422153
23 Lift Linkage Adjustment Bracket 824566
24 Whiz Bolt 253189
25 Torsion Spring 284423
26 Hex Bolt 243205
27 Nut 254440
28 Washer 257040
29 Lock Nut 253890
30 Flanged Whiz Bolt 253203
31 Whiz Nut 253043
32 Hex Bolt 243365
  Lock Nut 253890
33 3344 Right Lift Tube 644448
  3348 Right Lift Tube 644455
34 3344 Left Lift Tube 644449
  3348 Left Lift Tube 644456
35 Round Head Bolt 243670
36 Height Adjustment Sleeve Nut 321185
37 33 Series Liftrod Bracket 644072
38 Nut 254470
39 Washer 257063
40 Cotter Pin 260650
41 L48 Deck Latch 729169
42 Deck Latch 33 Series with Blower 729231
43 Washer 257067
44 Compression Spring 283332
45 Hex Bolt 243600
46 Spiral Loc Flange Nut 253067
47 Tilt Latch Spacer 902292
48 Standard Traction Took Kit 783068
49 Linch Pin 261624
50 Roller Mount Spacer 902284

Return to 3344 2015 Index Return to Top
