Genuine OEM Grasshopper® Mower Parts Diagrams

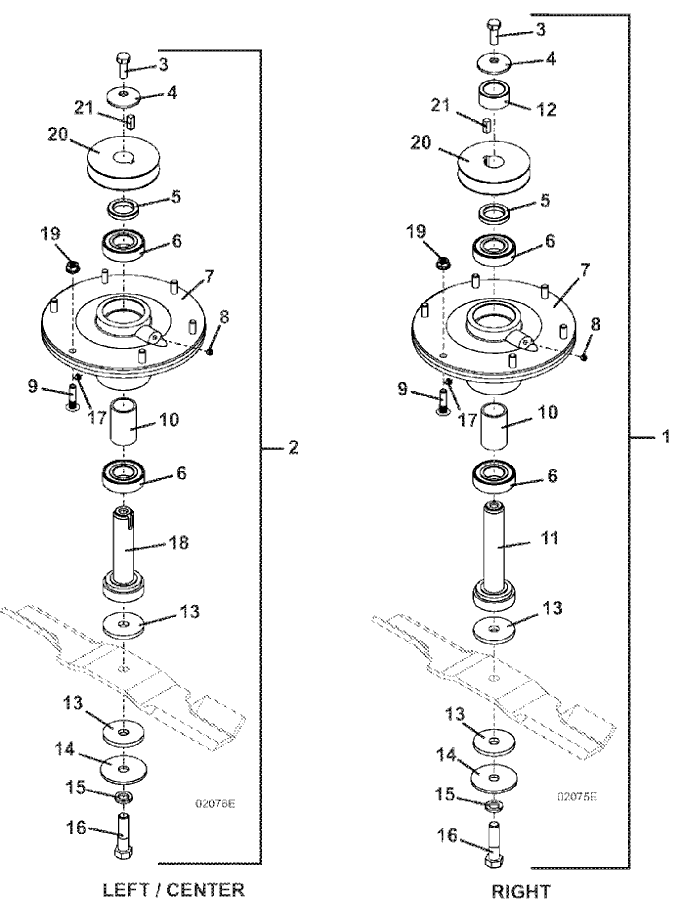

3344 Deck • Blade Spindle Assembly
2017
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
| 1 |
Right Blade Spindle Assembly(includes items 3-16) |
623773 |
| 2 |
Left/Center Blade Spindle Assembly (includes items 3-10 and 13-18) |
623774 |
| 3 |
Hex Bolt |
243331 |
| 4 |
Cupped Washer |
257041 |
| 5 |
Spacer |
282607 |
| 6 |
Ball Bearing |
110081 |
| 7 |
Aluminum Spindle Housing |
604412 |
| 8 |
Set Screw (Zerk Grease Fitting 280745 can go here instead) |
259305 |
| 9 |
Ribbed Neck Round Head Bolt |
247141 |
| 10 |
Shallow Bearing Spacer |
903645 |
| 11 |
Spindle Shaft Assembly |
604768 |
| 12 |
Spacer |
282630 |
| 13 |
Fiber Washer |
421200 |
| 14 |
Washer |
257061 |
| 15 |
Hardened Washer |
257057 |
| 16 |
Grade 5 Hex Bolt |
243581 |
| 17 |
Relief Plug |
280705 |
| 18 |
25 MM Spindle Shaft Assembly |
604764 |
| 19 |
Whiz Nut |
253035 |
| 20 |
Sheave |
414675 |
| 21 |
Key Square |
281580 |
