Genuine OEM Grasshopper® Mower Parts Diagrams

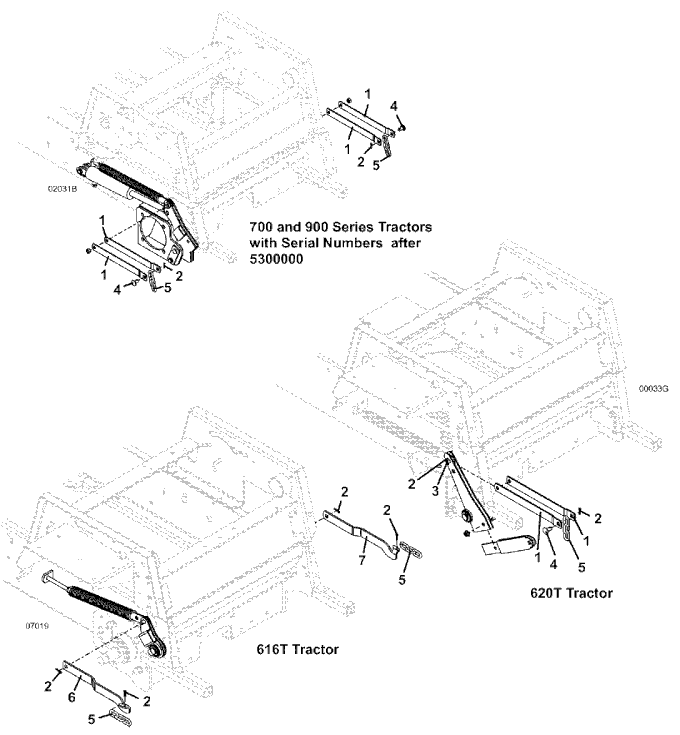

3344 Deck • Traction Kit Adapter
2021
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart, call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
STRAP- LIFT 600 W/SL DECK |
732410 |
2 |
Cotter Pin |
260648 |
3 |
Clevis Pin |
261339 |
4 |
Clevis Pin |
261336 |
5 |
Lift Chain (3 Links) |
820317 |
6 |
616T Right Strap Lift |
725492 |
7 |
616T Left Strap Lift |
725493 |
Return to 3344 2021 Index
