Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

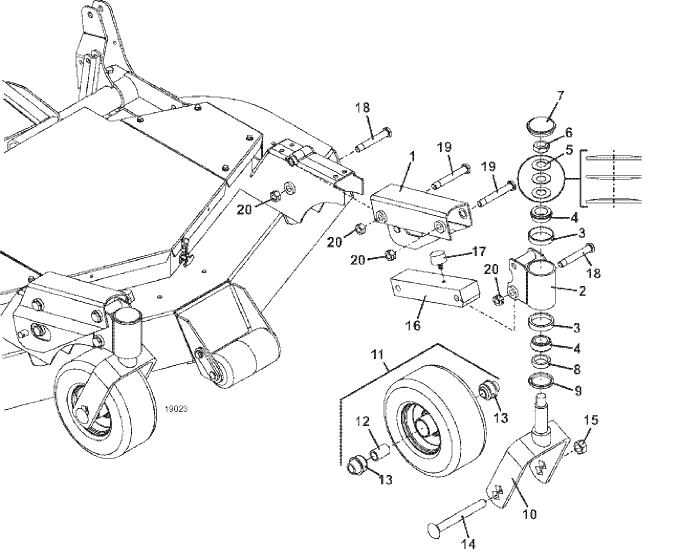

3344 Deck • Wheel Lift Assembly

2021

Wheel Lift Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1 Right Lift Channel 33/34 Series 644461
  Left Lift Channel 33/34 Series 644462
2 HD Deck Fork Housing 824982
3 Bearing Cup 123522
4 Taper Bearing 122522
5 Spring Washer 257320
6 TopLock Nylon Jam Nut 254505
7 Domed Dust Cap 481434
8 Spacer 282615
9 Seal 125855
10 Fork & Lock Nut Assembly 604368
10 Wheel & Tire Assembly (Semi-Pnuematic) 603973
12 Axle Spacer 423751
13 Wheel Bearing 120048
14 Carriage Bolt 247716
15 Lock Nut 253970
16 Deck Stabilizer with Bumper 822312
17 Rubber Bumper 424053
18 Hex Bolt 243609
19 Hex Bolt 243614
20 Lock Nut 253930
