Genuine OEM Grasshopper® Mower Parts Diagrams

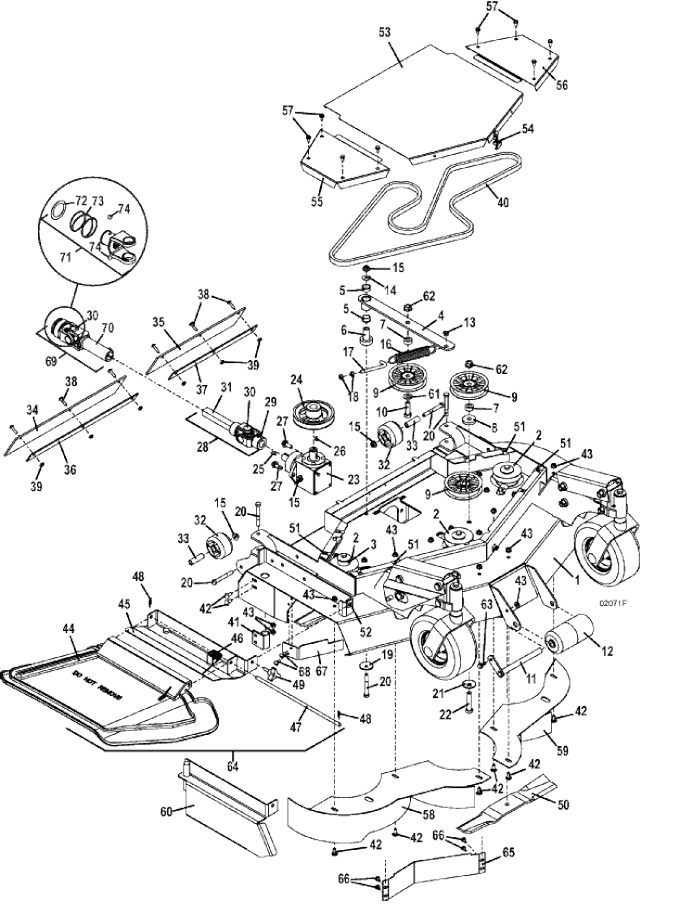

3344 Deck • Mower Assembly

2022

Mower Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1 3344 Deck Weldment 644166
2 Sheave 414675
3 Spacer 282630
4 Idler Arm -3344 F/A 824480
5 Oilite Bearing 121756
6 Pedestal Bearing 121650
7 Spacer 902313
8 Washer 257160
9 Idler 393225
10 Hex Bolt 243575
11 Roller Lock Pin 644512
12 2 Piece Center Roller Assembly 603725
13 Nylon Bearing 422520
14 Washer 257040
15 Whiz Nut 253043
16 Extension Spring 283848
17 Idler Adjustment "J" Bolt 730391
18 Nut 254450
19 Cupped Washer 257041
20 Hex Bolt 243365
21 Washer 257059
22 Hex Bolt 243590
23 Right Angle CCW (Counter ClockWise) Gearbox 390021
24 Sheave 415874
25 Woodruff Key 281828
26 Woodruff Key 281833
27 Flanged Whiz Bolt 253203
28 Rectangular UN Half Shaft 398525
29 Yoke 401010
30 Cross & Bearing 121010
31 Rectangular Yoke & Shaft 402605
32 Roller 426122
33 Roller Mount Spacer 902284
34 3344 Right Deck Flap 424173
35 3344 Left Deck Flap 424174
36 3344 Right Deflector Strap 774227
37 3344 Left Deflector Strap 774228
38 Bolt 253181
39 Whiz Nut 253025
40 Deck Belt 383012
41 Vacuum Housing Pivot Mount 643632
42 Carriage Bolt 247130
43 Whiz Nut 253035
44 Flex Discharge Shield 422042
45 33 Series Discharge Shield Mount 644567
46 Torsion Spring 284406
47 Flex Discharge Shield Pin 780650
48 Cotter Ring 260608
49 3 Prong HD Deck Stud 252821
50 15" High-Lift Notched Blade 320234
  15" Medium Lift Blade 320231
  15" Contour Blade 320233
  15" High-Low Mulching Blade 320235
  15" Extreme High-Lift Blade 320248
51 Speed Nut 254431
52 Speed Nut 254448
53 3344 Center Shield Assembly 604747
54 Rubber Draw Latch 281300
55 3344 Right Belt Shield 722498
56 3344 Left Belt Shield 722499
57 Hex Whiz Bolt 253175
58 3344 Right Mulch Plate 644605
59 3344 Left Mulch Plate 644606
60 3344/48 Mulch End Cap 644175
61 Washer 257062
62 Spiral Loc Flanged Nut 253067
63 Flanged Hex Whiz Bolt 253192
64 3344/48 Flex Discharge Shield Assembly 604318
65 3344 Aux Front Shroud 724516
66 Truss Whiz Bolt 253176
67 Discharge Deflector Shroud 729704
68 Truss Whiz Bolt 253177
69 Rectangular UN Half Sleeve 398914
70 Yoke with Sleeve 401021
71 Yoke Splined Quick Disconnect 401019
72 External Retainer 263660
73 Compression Spring 283525
74 Steel Ball 300014
75 33 Series Deck Decal Set 603279
