Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

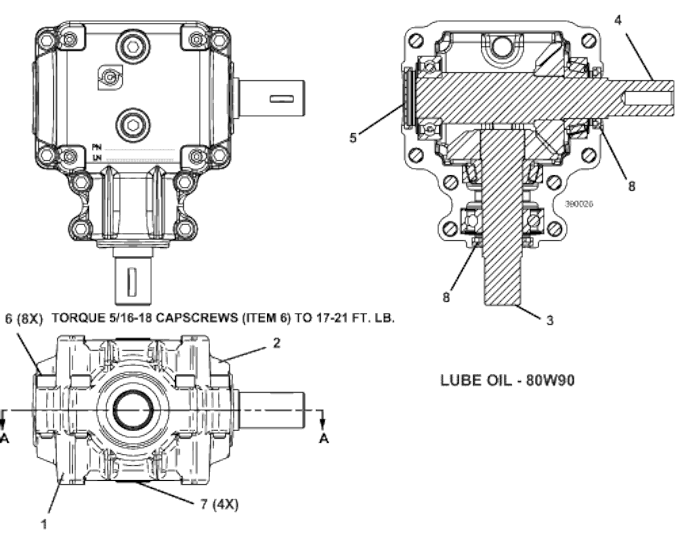

3661 Side Discharge Deck • Gearbox 390026

2018

Gearbox

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Half Housing (Tap Side)

391731

2

Half Housing (Thru Side)

391732

3

Shaft Assembly

393540

4

Shaft Assembly

393546

5

1.5 Inch Expansion Plug

365541

6

Socket Head Screw

259596

7

NOT AVAILABLE

365511

8

Seal

125391

Return to 3661 Index Return to Top
