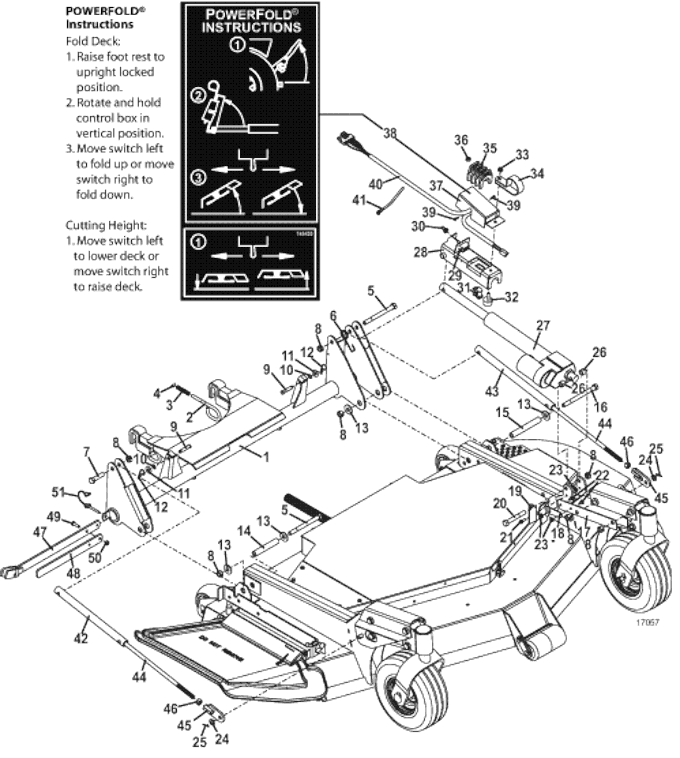

1

3661 Lift Arm Assembly

604556

2

Deck Mount Latch Pin

730433

3

Compression Spring

283285

4

External Retainer

263490

5

Hex Bolt

243635

6

Torsion Spring

284423

7

Hex Bolt

243580

8

Lock Nut

253930

9

Clevis Pin

261362

10

Push-On Retainer

262950

11

Washer

257040

12

Hair Pin

260523

13

Washer

257060

14

3472 Right Lift Arm pivot Tube

902002

15

3472 Left Lift Arm Pivot Tube

902001

16

Hex Bolt

243640

17

Cut Height Arm

774674

18

Cut Height Plate

729493

19

3661 Cut Height Pointer

724999

20

Hex Bolt

243610

21

Hex Whiz Bolt

253175

22

Truss Whiz Bolt

253176

23

Whiz Nut

253025

24

Washer

257063

25

Cotter Pin

260650

26

Spacer

902303

27

12V DC Actuator

180035

28

Electric Lift Switch Mount

644805

29

Toggle

184084

30

Toggle Switch Boot

425200

31

Snap Mount Plunger SPST NC Switch

183867

32

Bumper with Stud

424056

33

Whiz Nut

253035

34

Flange Whiz Bolt

253203

35

Powerfold Height Adjustment Spacer Mount

423697

36

Height Adjustment Spacer

902297

37

Electric Lift Switch Shield Mount

722005

38

Powerfold Instructions Decal

165430

39

Hex Machine Screw

250169

40

Deck Tilt/Height Adjustment Wiring Assembly

605965

41

Tie

423150

42

Right Lift Tube

644448

43

Left Lift Tube

644455

44

Round Head Bolt

243670

45

Lift Rod Bracket

644068

46

Nut

254470

47

Traction Kit Lever Assembly

604843

47

Offset Traction Kit Tool

643944

48

Traction Kit Lever Extension

782979

49

Hex Bolt

243205

50

Nylon Insert Nut

253450

51

Linch Pin

261624
