Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

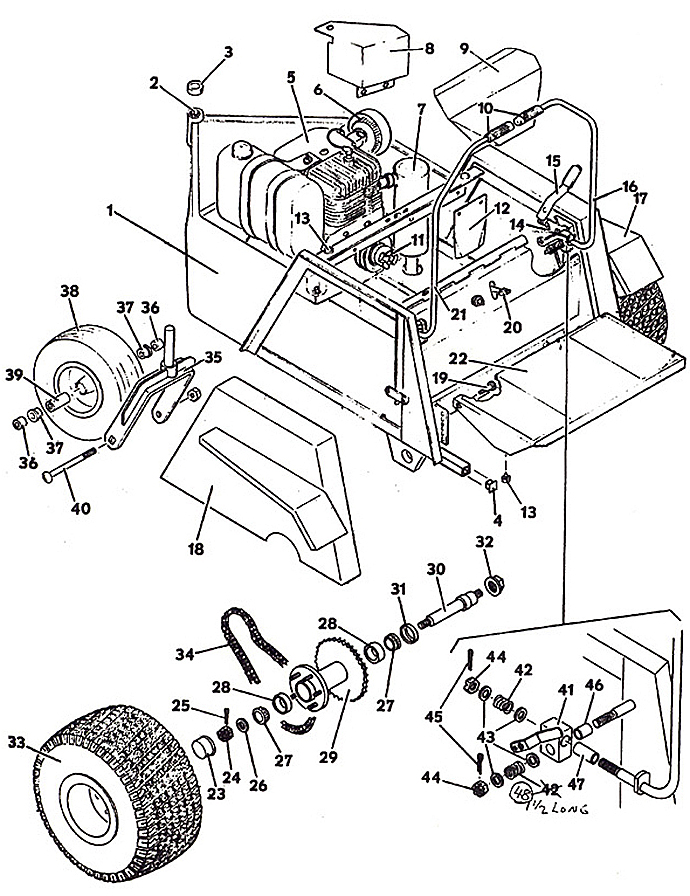

1210 • Tractor Assembly

1985

Tractor Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Tractor Frame

643381

2

Needle Bearing

121590

3

Collar Set

280440

4

Plug

422065

5

12hp Kohler Engine

100110

6

Air Filter

100900

7

Muffler

101200

8

Air Deflector Shield

643745

9

Muffler Heat Shield

722370

10

Handle Grip

422160

11

Coupler

388419

12

Lower Muffler Heat Shield

722245

13

Rubber Bumper

424015

14

Brake Linkage Rod

730305

15

Brake Band Lever

643518

-

Handle Grip

422150

16

Steering Lever - Left

643535

17

Fender Extension - Left

643341

18

Fender Extension - Right

643340

19

Bolt

259741

20

Mechanical Throttle

142320

21

Steering Lever - Right

643534

22

Foot Rest

643710

23

Dust Cap

481432

24

Nut

254502

25

Cotter Pin

260670

26

Washer

257091

27

Tapered Bearing

122522

28

Bearing Cup

123522

29

Hub Assembly

603427

30

Axle

883155

31

Seal

125525

32

Nut

253100

33

Wheel & Tire - 16 x 7.5 x 8

483900

-

Tire - Turf - 16 x 7.5 x 8

482400

-

Wheel - 8 x 5.375

483400

-

Wheel & Tire  - 18 x 8.5 x 8

483903

-

Tire - 18 x 8.5 x 8

482450

34

Chain

385290

-

Connecting Link

388010

35

Fork

643368

36

Axle Spacer

902425

37

Bearing

120050

38

Wheel & Tire w/Brgs & Spacer - 13 x 5 x 6

483861

-

Tire - 13 x 5 x 6

482350

-

Wheel - 6 x 3.25

483301

39

Spacer

902475

40

Bolt

247725

41

Steering Lever Pivot - Left

643637

-

Steering Lever Pivot - Right

643636

42

Compression Spring

283324

43

Washer

257063

44

Nut w/Nylon Insert

253470

45

Cotter Pin

260654

46

Nylon Bearing

422560

47

Nylon Bearing

422580

48

Compression Spring

283325
