Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

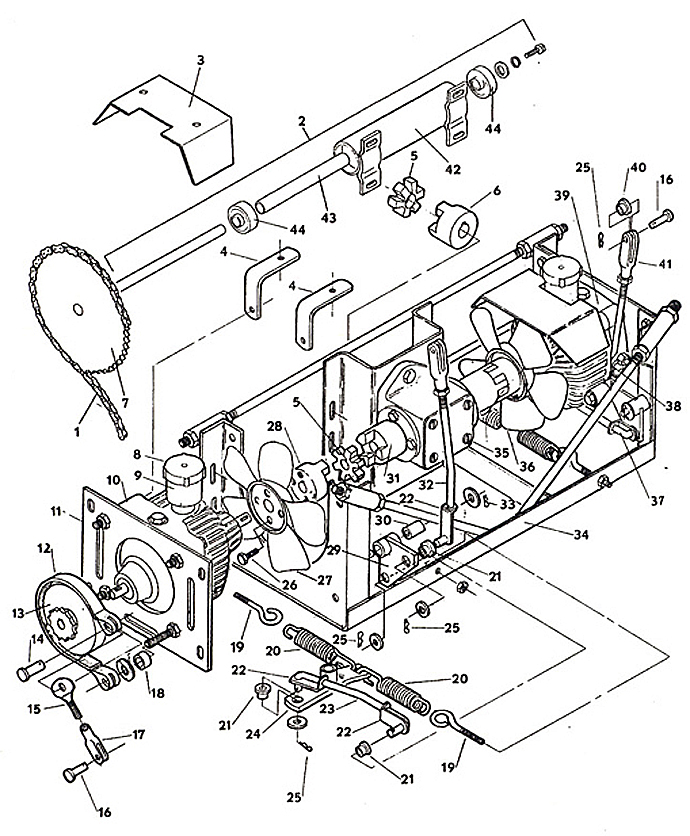

1210 • Drive Assembly

1986

Drive Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Chain

385255

2

Drive Unit Jackshaft Assembly

603455

3

Fan Shroud

720185

4

Bracket

732545

5

Coupler Spider

388500

6

Coupler

388413

7

Threaded Sprocket & Shaft

643761

8

Reservoir Cap & Gasket

422001

9

Hydro Reservoir

422005

10

New Hydro Transmission - Right

603824

11

Drive Mount Plate

775255

12

Brake Band Assembly

481115

13

Sprocket & Drum Assembly

417515

14

Clevis Pin

261340

15

Eye Bolt

830018

16

Clevis Pin

261284

17

Clevis Yoke

265538

18

Spacer

902280

19

Eye Bolt

240026

20

Extension Spring

283822

21

Nylon Bearing

422520

22

Clip Backing

722012

23

Steering Linkage Rod

730275

24

Transmission Control Bottom Arm

643050

25

Hair Pin

260520

26

Screw

250169

27

7" counter-clockwise Nylon Fan

320856

28

Flex Coupling

831020

29

Pivot Bracket

643145

30

Nylon Bearing

422560

31

Coupler

388415

32

Threaded Rod

730295

33

Hair Pin

260523

34

Hydro Drive Mount

643550

35

Gearbox

390220

36

7" clockwise Nylon Fan

320857

37

Steering Linkage Rod

730285

38

Spring

284205

39

New Hydro Transmission - Left

603825

40

Nylon Bearing

422540

41

Clevis Yoke

265537

42

Jackshaft Bearing Housing

824535

43

Spacer

902413

44

Ball Bearing

120063

Return to 1210 Index Return to Top
