Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

1210 • Power Shaft & Clutch

1986

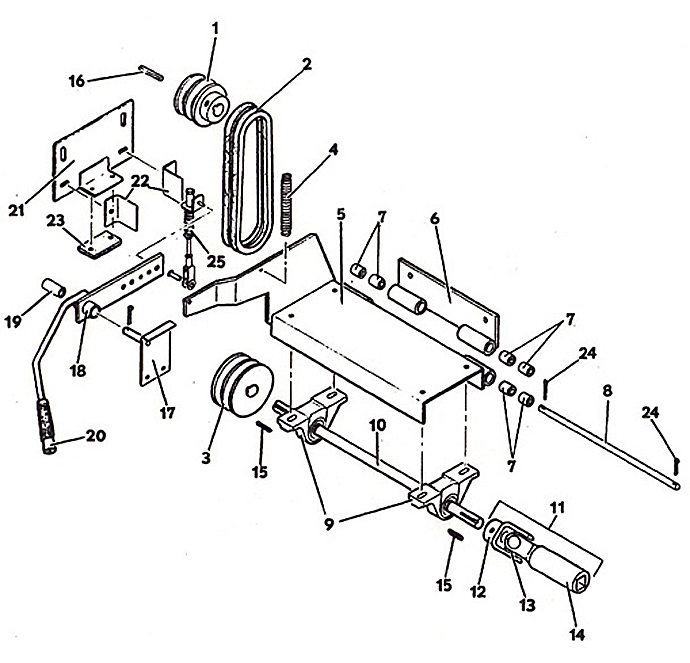

Power Shaft and Clutch Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Sheave

416075

2

Belt

381100

3

Sheave

416085

4

Extension Spring w/Swivel

283820

5

Clutch Bearing Plate

643646

6

Hinge

643412

7

Nylon Bearing

422560

8

Clutch Hinge Pin

780640

9

Pillowblock Bearing

122025

10

Power Shaft

881455

11

UN Half Sleeve

398910

12

Yoke

401005

13

Cross & Bearing

121010

14

Yoke w/Sleeve

401015

15

Square Key

281565

16

Square Key

281585

17

Lever Pivot Mount

643566

18

Clutch Lever

643520

19

Nylon Bearing

422580

20

Handle Grip

422160

21

PTO Brake Plate

643652

22

Belt Guide

724029

23

PTO Brake Pad

822315

24

Cotter Pin

260652

25

Tensioner Assembly

603740

-

Compression Spring

283322

-

Short Spring Mount

643576

-

Clevis Pin

261284

-

Clevis Yoke

265537

-

Bolt

243290

Return to 1210 Index Return to Top
