Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

1212 • Power Shaft & Clutch

1987

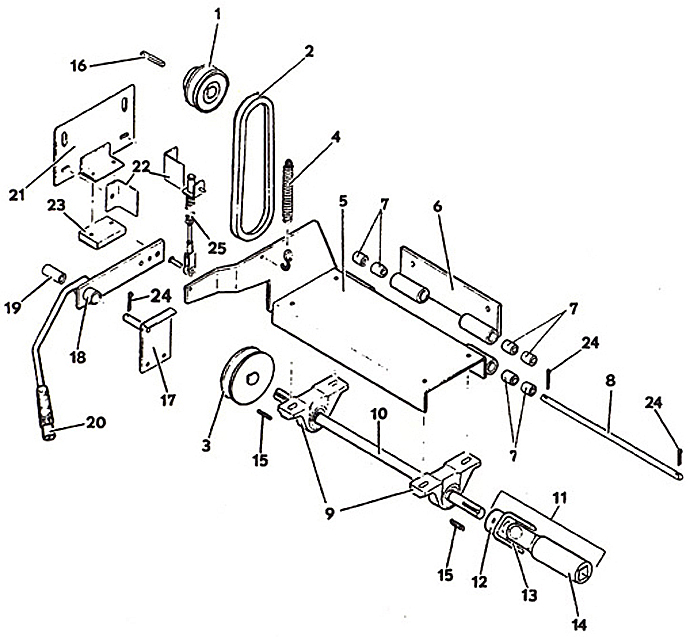

Power Shaft and Clutch Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Sheave

415864

2

Belt

383400

3

Sheave

415883

4

Extension Spring with Swivel

283820

5

Clutch Bearing Plate

643646

6

Hinge

643412

7

Nylon Bearing

422560

8

Clutch Hinge Pin

780640

9

Pillowblock Bearing

122025

10

Power Shaft

881455

11

UN Half Sleeve

398910

12

Yoke

401005

13

Cross & Bearing

121010

14

Yoke with Sleeve

401015

15

Square Key

281565

16

Square Key

281585

17

Lever Pivot Mount

643566

18

Clutch Lever

643520

19

Nylon Bearing

422580

20

Handle Grip

422160

21

Brake Plate

643653

22

Belt Guide

724029

23

PTO Brake Pad

822316

24

Cotter Pin

260652

25

Tensioner Assembly

603740

-

Hex Bolt

243290

-

Clevis Pin

261284

-

Clevis Yoke

265537

-

Compression Spring

283322

-

Short Spring Mount

643576
