Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

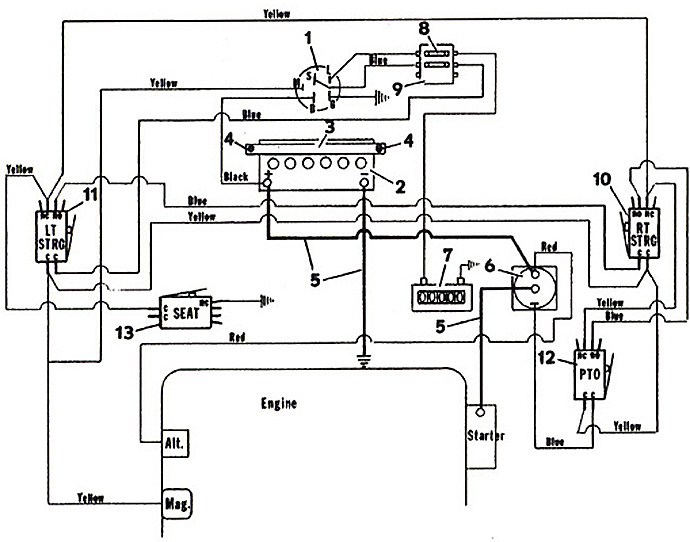

1212 • Electrical Wiring

1991

Electrical Wiring

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Briggs & Stratton / Kohler Key Switch

183806

-

Ignition Key with Cover

101101

-

Nut

254498

-

Plastic Panel

422078

2

12 Volt Wet Battery

180125

3

Battery Hold Down

822410

4

Hook Bolt

240110

5

Red Battery Cable

180319

-

Starter Terminal Boot

425219

6

3-Post Solenoid Relay Switch

184250

7

Snap-in Hour Meter

141551

-

Hour Meter Mounting Bracket

722060

8

6 Amp Fuse

181540

9

Fuse Block

603135

10

Safety Switch

183865

-

Switch Mount - Right

722020

11

Safety Switch

183865

-

Switch Mount - Left

722021

12

Safety Switch

183865

13

Safety Switch

183865

-

Seat Safety Switch & Mount Assembly

603790

-

Seat Switch Mount

724100

-

Compression Spring

283322

-

Clevis Pin

261328

-

Machine Screw

250318

14

Mag 1210 Wiring Group

603881

15

Console Decal for Water-Cooled 700 Model

161131

Return to 1212 Index Return to Top
