Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

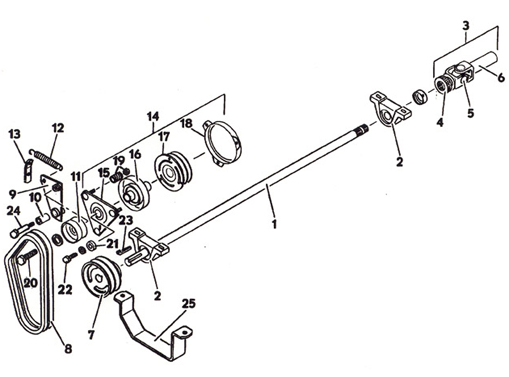

1622 • PTO Shaft & Clutch Assembly

1986

PTO Shaft and Clutch Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Power Shaft

393757

2

Pillowblock Bearing

122044

3

UN Half Shaft

398914

4

Splined Quick Disconnect Yoke

401019

5

Cross & Bearing

121010

6

Yoke w/Sleeve

401015

7

Sheave

415650

8

Belt

381914

9

PTO Idler Arm Assembly

603440

10

Nylon Bearing

422585

11

Idler

393175

12

Extension Spring w/Swivel

283820

13

Idler Bracket

732835

14

Clutch Assembly

604180

15

Field Assembly

388789

16

Rotor Assembly

604180

17

Armature w/Pulley

388792

18

Brake Drum

388793

19

Spring/Nut Assembly

388791

20

Bolt

243810

21

 Retainer Washer

883801

22

Bolt

243344

23

Key

281588

24

Bolt

259745

25

Guard

733147

Return to 1622 Index Return to Top
