Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

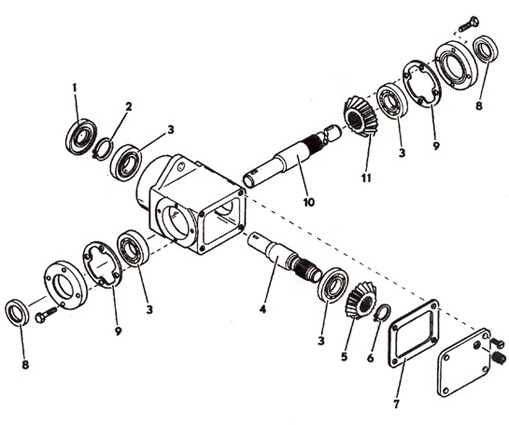

1622 • Gearbox Assembly

1986

Gearbox Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

-

Gearbox

390220

1

Seal

125339

2

External Retainer

263540

3

Bearing

120071

4

Shaft

393513

5

Bevel Gear - 8 Pitch

392500

6

External Retainer

263530

7

Gearbox Cover Gasket

420200

8

Seal

125336

9

Gearbox Cap Gasket

420201

10

Shaft

393518

11

Bevel Gear

392501

Return to 1622 Index Return to Top
