Genuine OEM Grasshopper® Mower Parts Diagrams

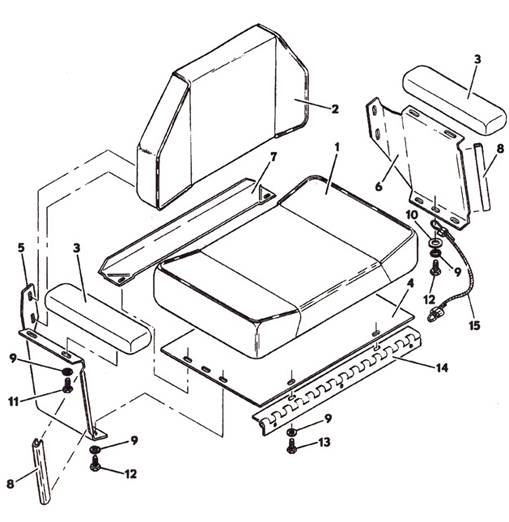

1622 • Seat Assembly

1986

Seat Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

-

Seat Assembly

603763

1

Seat Cushion

321508

2

Back Cushion

321509

3

Armrest

321501

4

Bottom Seat Panel

771088

5

Side Member - Right

724310

6

Side Member - Left

724311

7

Seat Bottom Reinforcement

724205

8

Trim

822630

9

Washer

257410

10

Washer

257030

11

Bolt

243195

12

Screw

243205

13

Bolt

243210

14

Seat Hinge

820165

15

Seat Cable

603210

Return to 1622 Index Return to Top
