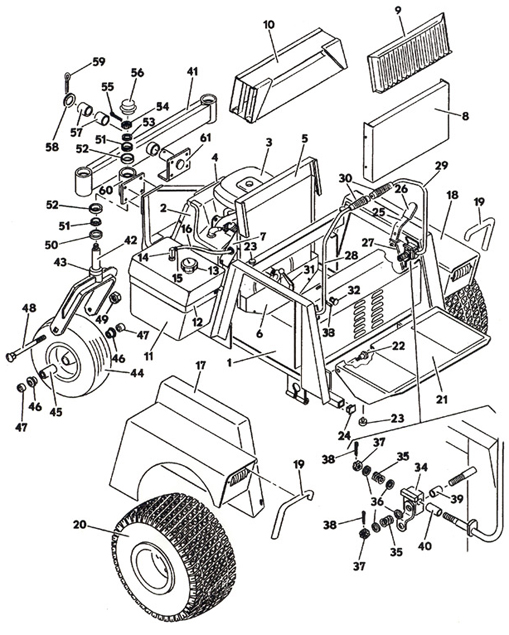

1

Tractor Frame

643397

2

Engine - B&S 16HP

100135

3

Air Filter - B&S

100920

-

Air Filter Pre Cleaner

2744905S

4

Muffler - B&S

101210

5

Duct Mount

643316

6

Intake Duct Lower Panel

771027

7

Intake Duct Brace - Right

722091

-

Intake Duct Brace - Left

722092

8

Duct Panel

721222

9

Intake Grille

643402

10

Exhaust Housing

643429

11

Fuel Tank w/Draw Tube

603813

12

Fuel Tank Mounting Bracket

643144

13

Fuel Cap w/Level

141125

14

Fuel Draw Tube

101819

15

Hose Clamp

280260

16

Fuel Hose

821725

-

Fuel Filter

366560

17

Fender - Right

643350

18

Fender - Left

643351

19

Fender Edge Trim

822635

20

Wheel & Tire - 18 x 8.5 x 8

483903

-

Tire - 18 x 8.5 x 8

482451

-

Wheel -  8 x 5.375

483400

21

Foot Rest

643710

22

Bolt

259741

23

Rubber Bumper

424015

24

Plug

422065

25

Brake Band Lever

643518

26

Handle Grip

422150

27

Brake Linkage Rod

730292

28

Steering Lever - Right

643534

29

Steering Lever - Left

643535

30

Handle Grip

422160

31

Throttle Assembly

142305

32

Mechanical Choke

142225

33

PTO Switch

604796

34

Steering Lever Pivot - Left

643640

-

Steering Pivot - Right

643638

35

Compression Spring

283324

36

Washer

257064

37

Nut w/Nylon Insert

253470

38

Cotter Pin

260654

39

Nylon Bearing

422560

40

Nylon Bearing

422580

41

Dual Wheel Beam

824510

42

Rear Fork & Nut Assembly

604364

43

Spacer

282615

44

Wheel & Tire w/Brgs & Spacer - 13 x 5 x 6

483861

-

Tire - 13 x 5 x 6

482350

-

Wheel - 6 x 3.25

483301

45

Spacer

902475

46

Bearing

120050

47

Spacer

902425

48

Bolt

247725

49

Nut

253970

50

Seal

125855

51

Bearing

122522

52

Bearing Cup

123522

53

Washer

257091

54

Nut

254502

55

Cotter Pin

260670

56

Dust Cap

481432

57

Oilite Bearing

833275

58

Washer

257150

59

Cotter Pin

260694

60

Pivot Housing Assembly

604596

61

Rear Axle Pivot Assembly

603634
