Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

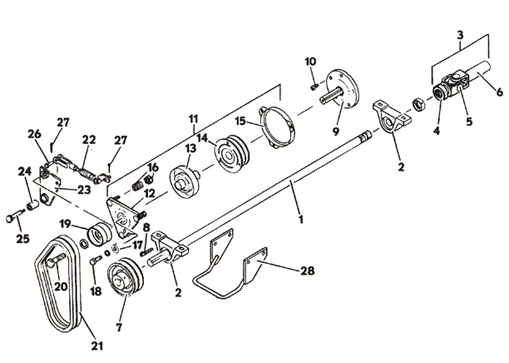

1822D • PTO Shaft & Clutch Assembly

1988

PTO Shaft and Clutch Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Power Shaft

393760

2

Pillowblock Bearing

122044

3

UN Half Shaft

398914

4

Splined Quick Disconnect Yoke

401019

5

Cross & Bearing

121010

6

Yoke w/Sleeve

401015

7

Sheave

415650

8

Gib Key

281588

9

Clutch Stub Shaft Kit

503715

10

Screw

270075

11

Clutch Assembly

604180

12

Field Assembly

388796

13

Rotor Assembly

388797

14

Armature w/Pulley

388792

15

Brake Drum

388793

16

Spring/Nut Assembly

388791

17

Washer

883801

18

Bolt

243344

19

Idler

393175

20

Bolt

243810

21

Belt

381914

22

PTO Tensioner Assembly

603818

-

Clevis Yoke

265537

-

Compression Spring

283322

-

Belt Tensioner Mount

643575

-

Bolt

243290

23

Idler Arm w/Bearing

603079

24

Nylon Bearing

422585

25

Bolt

259745

26

Clevis Pin

261284

27

Cotter Pin

260652

28

Rear Sheave Guard

643407
