Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

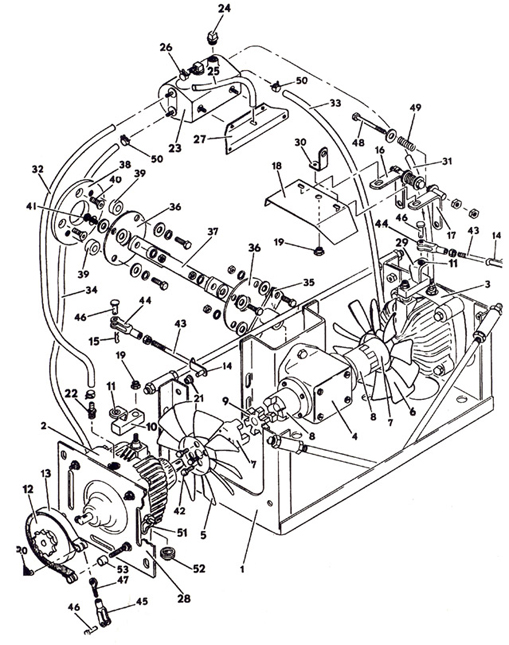

1822D • Drive Assembly

1988

Drive Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Hydro Mount

643543

2

Hydrostat  CCW w/Adapter

391429

3

Hydrostat CW w/Adapter

391430

4

Gearbox

390220

5

Nylon Fan - CCW

320856

6

Nylon Fan - CW

320857

7

Flex Coupling

831020

8

Coupler

388415

9

Spider Coupler

388500

10

Transmission Control Arm

643051

11

Nylon Bearing

422540

12

Sprocket & Drum Assembly

417515

13

Brake Band Assembly

481115

14

Clip Backing

722012

15

Hair Pin

260520

16

Mount - Right Fan Shroud

643564

17

Mount - Left Fan Shroud

643565

18

Shroud

724149

19

Nut

254455

20

Clevis Pin

261340

21

Nylon Bearing

422520

22

Reservoir Assembly

603705

23

Plug

365516

24

Plug

365516

25

Hose

821719

26

Hose Clamp

280360

27

Reservoir Mounting Bracket

724139

28

Plate

755255

29

Control Arm - Left

643052

30

Bracket

732528

31

Hose

821712

32

Hose

821748

33

Hose

821732

34

Hose

821756

35

Flex Coupling Hub

824545

36

Flex Coupling Disc

821530

37

Coupling Connector

643226

38

Coupling Adapter

783458

39

Coupling Spacer

902318

40

Screw

270346

41

Bolt

830040

42

Screw

250169

43

Steering Linkage Rod

730289

44

Clevis Yoke

265537

45

Clevis Yoke

265538

46

Clevis Pin

261284

47

Eye Bolt

830018

48

Bolt

243366

49

Compression Spring

283320

50

Hose Clamp

280260

51

Hydro Spring

284205

52

Reservoir Adapter

422010

53

Spacer

902280
