Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

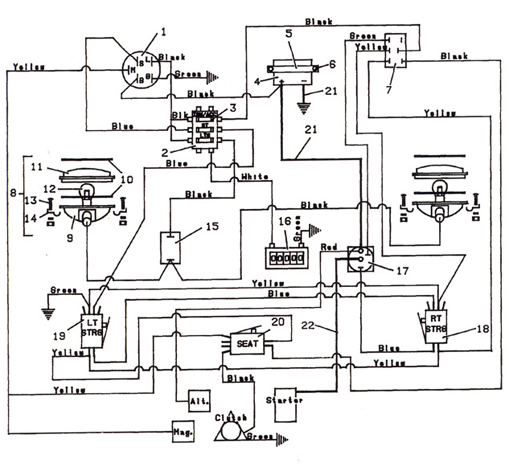

1822K • Wiring

1988

Wiring

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

-

Wiring Assembly

603884

1

Key Switch

183806

2

Fuse Block

603140

3

Fuse

181540

4

Battery - 12 Volt

-

-

Battery Box

643136

5

Battery Hold Down

822410

6

Hook Bolt

240110

7

PTO Switch

604796

8

Worklamp Assembly

182665

9

Lamp Housing

182350

10

Light Gasket

420550

11

Lamp Lens

182400

12

Light Bulb

182000

13

Screw

250258

14

Clip

180635

15

Light Toggle Switch

183950

16

Hour Meter

141551

-

Hour Meter Bracket

722060

17

Solenoid Switch

184251

18

Safety Switch

183865

-

Switch Mount - Right

722020

19

Safety Switch

183865

-

Switch Mount - Left

722021

20

Safety Switch

183865

-

Seat Switch

603973

-

Seat Switch Mount

724100

-

Compression Spring

283322

-

Clevis Pin

261328

-

Screw

250318

21

Battery Cable - Red

180319

-

Battery Boot

425219

22

Battery Cable - Red

180322

Return to 1822K Index Return to Top
