Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

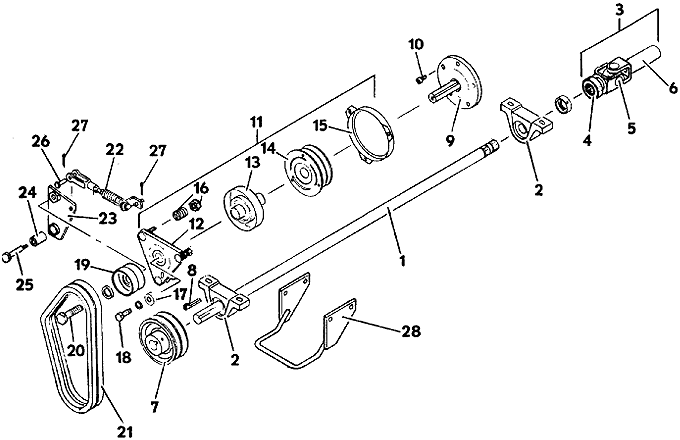

2132 • PTO Shaft & Clutch Assembly

1987

PTO Shaft and Clutch Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

39 Power Shaft

393760

2

SC Pillowblock Bearing

122044

3

UN Half Sleeve

398914

4

Quick-Disconnect Splined Yoke

401019

5

Cross & Bearing

121010

6

Yoke with Sleeve

401015

7

Sheave

415650

8

Gib Square Key

281588

9

Clutch Stub Shaft Kit

503715

10

M8 Socket Head Screw

270075

11

MS 1.00 Clutch Kit Assembly

604180

12

Field Assembly

388796

13

Rotor Assembly

388797

14

Armature with Pulley

388792

15

Brake Drum

388793

16

Spring / Nut Assembly

388791

17

Washer

883801

18

GR8 Hex Bolt

243344

19

Idler

393175

20

Hex Bolt

243810

21

Belt

381914

22

PTO Tensioner Assembly

603818

-

Hex Bolt

243290

-

Clevis Yoke

265537

-

Compression Spring

283322

-

Belt Tensioner Mount

643575

23

1822D Idler Arm with Bearing

603079

24

Nylon Bearing

422585

25

Shoulder Bolt

259745

26

Clevis Pin

261284

27

Cotter Pin

260652

28

1822D Rear Sheave Guard

643407
