Genuine OEM Grasshopper® Mower Parts Diagrams

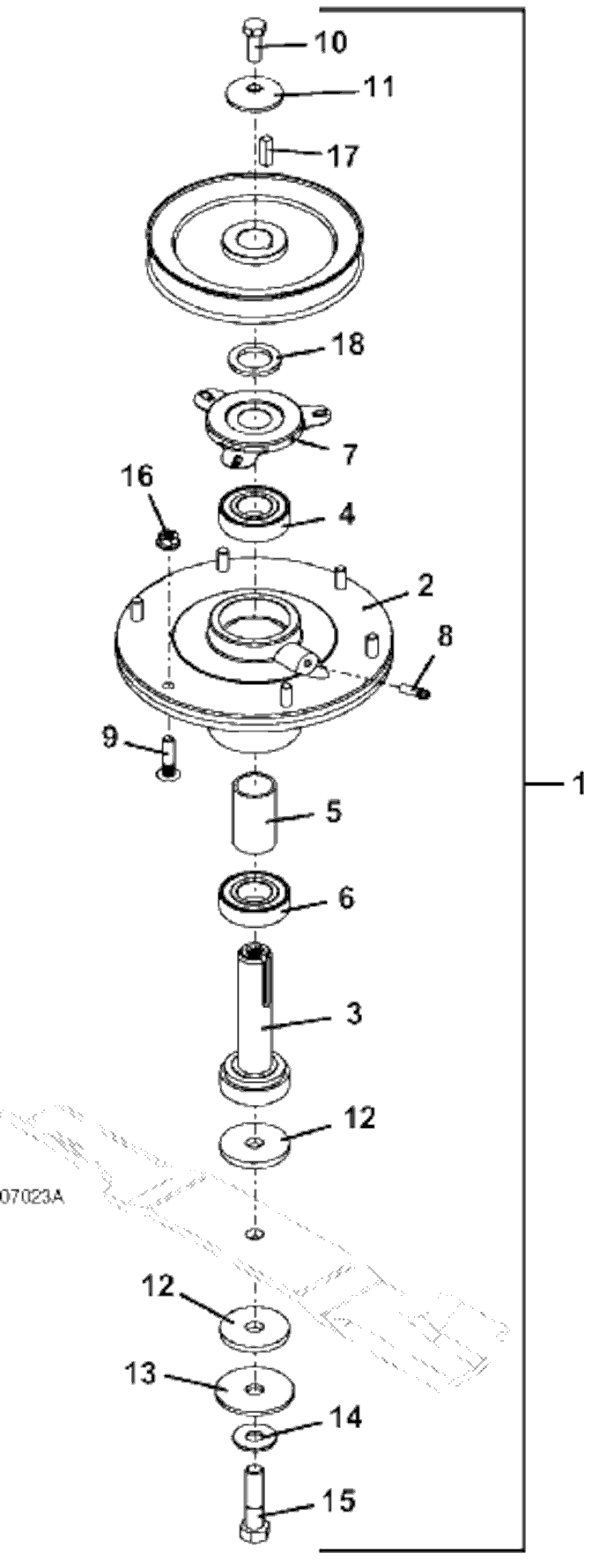

120K • Blade Spindle Assembly
2008
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
M1-48 Right/Left Spindle Assembly
(Includes 2-15 / no zert on new spindles) |
623760 |
2 |
4.0 Machined Spindle Housing |
320545 |
3 |
25mm 4.75 Spindle Shaft Assembly |
604764 |
4 |
2 Metal Seal 25mm Ball Bearing |
110080 |
5 |
Shallow Spacer Bearing Spacer |
903645 |
6 |
Single Seal Ball Bearing |
110082 |
7 |
Bearing Shield |
721167 |
8 |
(Zerk) Grease Fitting |
280745 |
9 |
Round Head Ribbed Neck Bolt |
247141 |
10 |
Hex Bolt |
243331 |
11 |
Cupped Washer |
257041 |
12 |
Fiber Washer |
421200 |
13 |
Washer |
257061 |
14 |
Blade Spindle Hardened Washer |
257057 |
15 |
Grade 5 Hex Bolt |
243581 |
16 |
Whiz Nut |
253035 |
17 |
Square Key |
281582 |
18 |
Washer |
257107 |
