Genuine OEM Grasshopper® Mower Parts Diagrams

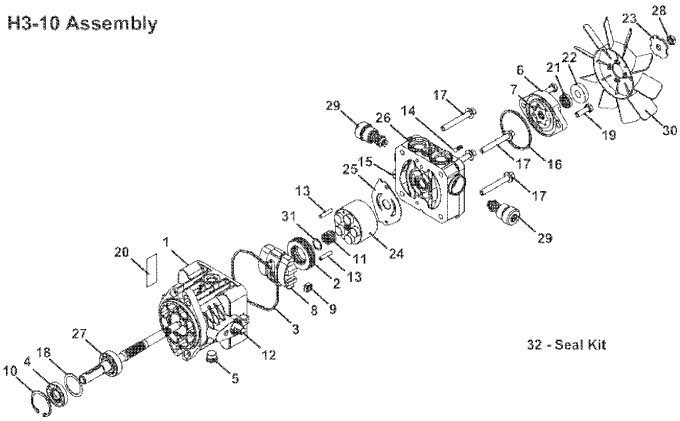

120K • Pump Breakdown

2010-5

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

H3 Housing Assembly

130460

2

Thrust Bearing

130413

3

Seal Ring

130457

4

Input Seal

125366

5

O-Ring

130447

6

H3 Charge Cover

130410

-

Charge Cover

130422

7

H3 Gerotor Set

130428

8

H1 Swashblock

130415

9

H1 Control Block

130417

10

H1 Input Seal Retaining Ring

130405

11

Spring

130473

12

Trunnion Arm

130419

-

Trunnion Seal

125359

-

Retaining Ring

130402

13

Dowel Pin

130459

14

Charge Relief Kit

130426

15

Bypass Valve

130448

-

Backup Ring

130517

-

O-Ring

130518

16

Charge Cover Seal Ring

130420

17

NOT AVAILABLE

000000

18

Washer

130407

19

Hex HD

271023

20

NOT AVAILABLE

000000

21

Thru Shaft Seal

125162

22

H2 Fan Hub

130430

23

Fan Retainer Washer

130432

24

Shaft & Barrel Assembly - Thru Shaft

130467

-

Shaft & Barrel Assembly

130466

25

Port Plate

130453

26

H3 Left End Block

130441

-

H3 Right End Block

130442

27

H3 Shaft Assembly

130476

-

H3 Thru Shaft Assembly

130477

28

Nylon Insert Nut

253461

29

NOT AVAILABLE

000000

-

O-Ring

126540

30

NOT AVAILABLE

000000

31

Thrust Washer

130479

32

H1 Seal Kit

130401

Return to 120K Index Return to Top
