Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

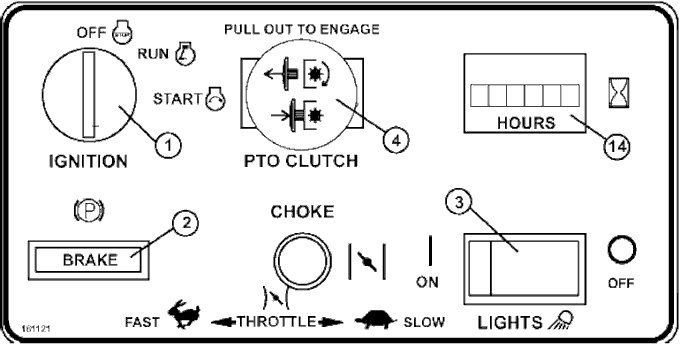

124 • Console

2008

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Briggs & Stratton / Kohler Ignition Switch with Key

183806

-

Ignition Key with Cover

101101

-

Nut

254498

-

Plastic Panel

422078

2

Brake Light Indicator

182326

3

Rocker Switch

184179

-

Light Switch Hole Plug

422076

4

Push/Pull Switch

183925

14

Snap-In Hour Meter

141551

15

Console Decal

161121
