Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

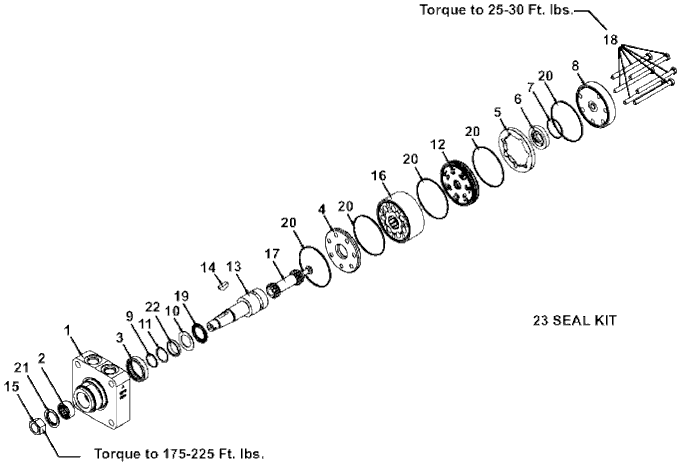

124 • Wheel Motor Breakdown

2008

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Housing Assembly - NOT AVAILABLE

000000

2

Outer Bearing

130368

3

Inner Bearing

130336

4

Wear Plate

130331

5

Commutator Ring - NOT AVAILABLE

000000

6

Commutator - NOT AVAILABLE

000000

7

(Hi-Temp) Commutator Seal

130312

8

End Cover - NOT AVAILABLE

000000

9

Back Up Ring

130303

10

Thrust Washer

130347

11

Back Up Washer

130304

12

Manifold - NOT AVAILABLE

000000

13

Coupling Shaft

130307

14

Key

281845

15

Nut

253992

16

Rotor Assembly

130376

17

Drive Link

130313

18

Special Bolt - NOT AVAILABLE

000000

19

Thrust Bearing

130348

20

Seal Ring

130390

21

Dirt & Water Seal

130325

22

Shaft Seal

130339

23

Seal Kit

130388

Return to 124 Index Return to Top
