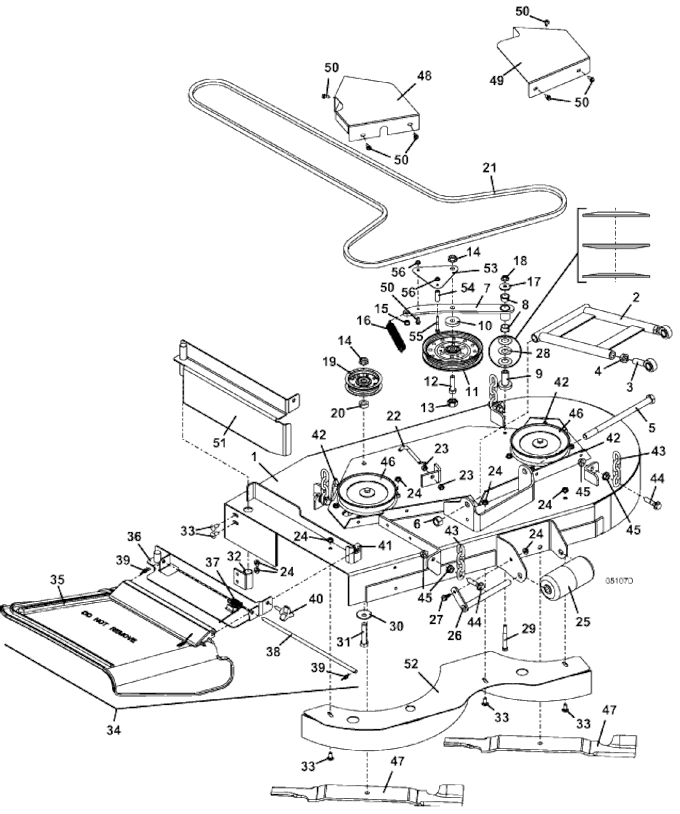

124 • Deck Assembly M241

2010

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

M2/41 Deck Weldment

644388

2

Radius Arm Assembly

604671

3

Rod End

265665

4

Nut

254493

5

Hex Bolt

243910

6

Lock Nut

253970

7

100/41 & 100/48 M148 Idler Arm Assembly

824483

8

Oilite Bearing

121756

9

Pedestal Bearing

121651

10

Washer

883804

11

Idler

393250

12

Hex Bolt

243575

13

Idler Arm Stabilizer Cap

423670

14

Flange Spiral Lock Nut

253067

15

Nylon Bearing

422520

16

Extension Spring

283824

17

Washer

774020

18

Whiz Nut

253043

19

Idler

393195

20

Spacer

902313

21

Belt

382070

22

Idler Adjustment J Bolt

730391

23

Nut

254450

24

Whiz Nut

253035

25

2-Piece Center Roller Assembly

603725

26

Roller Lock Pin

644512

27

Hex Flange Whiz Bolt

253192

28

Spring Washer

257319

29

Hex Bolt

243365

30

Washer

257059

31

Hex Bolt

243590

32

Vac Housing Pivot Mount

643632

33

Carriage Bolt

247130

34

M241 Flex Discharge Shield Assembly

604316

35

Flex Discharge Shield

422043

36

Discharge Shield Mount

644570

37

Torsion Spring

284406

38

Flex Discharge Shield Pin

780650

39

Cotter Ring

260608

40

3-Prong Head Deck Stud (Knob)

252821

41

Speed Nut

254448

42

Speed Nut

254431

43

4 Link Chain

820332

44

GR 8 Hex Bolt

243458

45

Whiz Nut

253058

46

Sheave

415906

47

21" High Lift Notch Blade

320245

-

21" Medium Lift Blade

320242

-

21" Contour Blade

320244

-

21" H-Low Mulch Blade

320247

-

21" High Lift Notch Laser Edge Blade

320318

-

21" Shredder Blade

320322

48

100/41 Right Belt Shield

722821

49

100/41 Left Belt Shield

722822

50

Hex Whiz Bolt

253175

51

M2 41 Mulch End Cap

644407

52

M2 41 Mulch Plate

644607

53

41" Deck Idler Guide Bracket

723012

54

Guide Tube

784057

55

Hex Bolt

243038

56

Whiz Nut

253025
