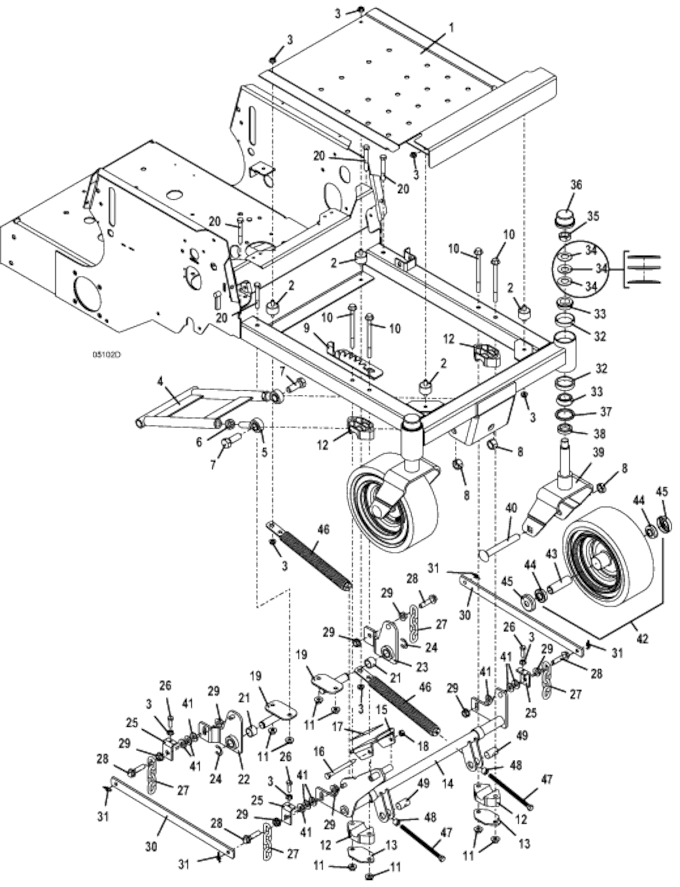

124 • Deck Carrier Linkage - M2/41" & M2/48" Decks

2010

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

M2 Footrest

644425

2

Vibration Isolator

424074

3

Whiz Nut

253035

4

M241 Radius Arm Assembly

604671

-

M248 Radius Arm Assembly

604670

5

Rod End

265665

6

Nut

254493

7

Hex Bolt

243805

8

2-Way Jam Lock Nut

253975

9

M2 Carrier Ratchet

725464

10

Flange Bolt

253215

11

Whiz Nut

253043

12

M1 Bearing Block

423643

13

Lift Bearing Plate

774064

14

M2 Front Carrier Pivot Assembly

644646

-

M248 Front Carrier Pivot Assembly

644649

15

M2 Height Adjustment Pedal

724663

16

Hex Bolt with Shank

243380

17

2.5 x 4.0 Tread

420906

18

Lock Nut

253890

19

M2 Carrier Pivot

644644

20

Hex Bolt

243360

21

M2 Carrier Spacer

902412

22

M2 right Carrier Rocker Assembly

603727

-

Oilite Bearing

121764

23

M1 left Carrier Rocker Assembly

603728

-

Oilite Bearing

121764

24

External Retainer

263529

25

M1 Deck Adjusting Strap

732586

26

Hex Bolt

243205

27

4 Link Chain

820332

28

GR 8 Hex Bolt

243458

29

Whiz Nut

253058

30

100 Height Adjustment Strap

725423

31

Cotter Ring

260608

32

Bearing Cup

123522

33

Tapered Bearing

122522

34

Spring Washer

257320

35

Nylon-Top Jam Lock Nut

254505

36

Dust Cap

481432

37

Seal

125855

38

Spacer

282615

39

M2 Fork

643384

40

Carriage Bolt

247705

41

Washer

257051

42

11 x 4 x 5 Pneumatic Wheel Assembly

603969

-

11 x 4 x 5 Tire

482340

-

11 x 4 x 5 Tube

482820

-

Wheel

483250

43

Rear Wheel Bearing Spacer

902475

44

Ball Bearing

120050

45

Wheel Bearing Guard

422570

46

Spring & Plug Nut Assembly

604762

47

Hex Bolt

243399

48

Spacer

902280

49

Spring Mount Shaft

881154

Return to 124 Index Return to Top
