Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

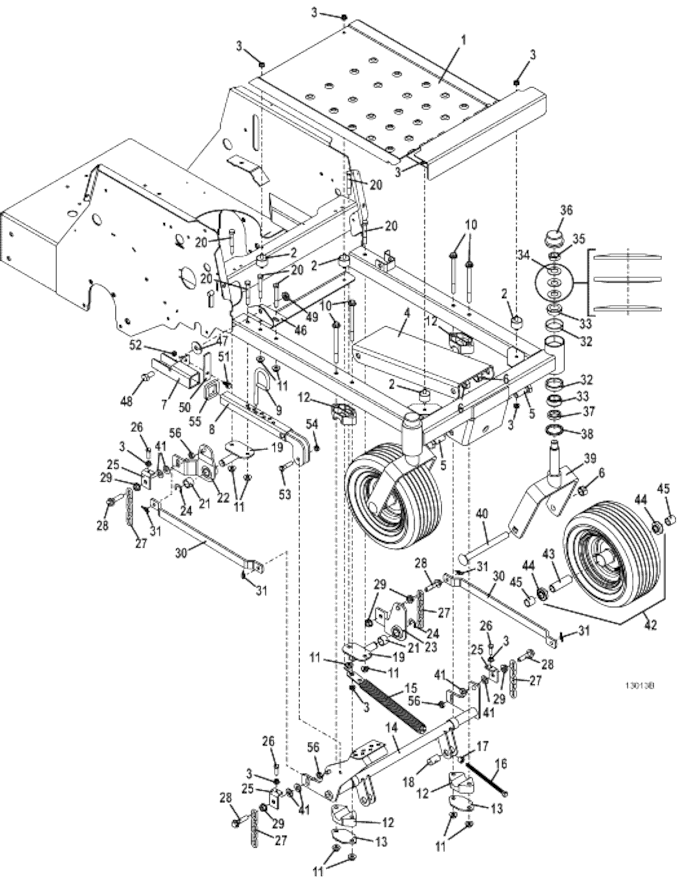

124 • Deck Carrier Linkage for 41" Decks

2014

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Footrest

645317

2

Vibration Isolator

424074

3

Whiz Nut

253035

4

Radius Arm

776219

5

Hex Bolt

243805

6

Lock Nut

253970

7

Latch Guide Tube

645274

8

Height Adjust Tube

645845

9

Height Adjustment Deck Pin

730434

10

Flange Bolt

253215

11

Whiz Nut

253043

12

M1 Bearing Block

423643

13

Lift Bearing Plate

774064

14

Carrier Pivot

645651

15

Spring & Plug Nut Assembly

604762

16

Hex Bolt

243399

17

Spacer

902280

18

Shaft Spring Mount

881154

19

M2 Carrier Pivot

644644

20

Hex Bolt

243360

21

M2 Carrier Spacer

902412

22

Rocker Assembly

603741

-

Oilite Bearing

121764

23

M1 Left Carrier Rocker Assembly

603728

-

Oilite Bearing

121764

24

External Retainer

263529

25

M1 Deck Adjusting Strap

732586

26

Hex Bolt

243205

27

M1 5 Links Chain

820331

28

GR 8 Hex Bolt

243458

29

Whiz Nut

253058

30

Carrier Linkage Strap

732811

31

Cotter Ring

260608

32

Bearing Cup

123522

33

Tapered Bearing

122522

34

Spring Washer

257320

35

Nylon-Top Jam Lock Nut

254505

36

Dust Cap

481432

37

Seal

125855

38

Spacer

282615

39

Fork

644268

40

Carriage Bolt

247726

41

Washer

257051

42

Wheel & Tire w/Bearing & Spacer

483861

43

Rear Wheel Bearing Spacer

902475

44

Ball Bearing

120050

45

Axle Spacer

902425

46

126 Height Adjust Mount

729685

47

Nylon Washer

821516

48

Hex Bolt

243560

49

Nylon Insert Nut

253470

50

Deck Latch

775147

51

Flange Whiz Hex Bolt

253192

52

Nylon Insert Nut

253450

53

Hex Bolt

243340

54

Nylon Insert Nut

253460

55

Height Adjustment Spacer

423696

56

Nut

254461

Return to 124 Index Return to Top
