Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

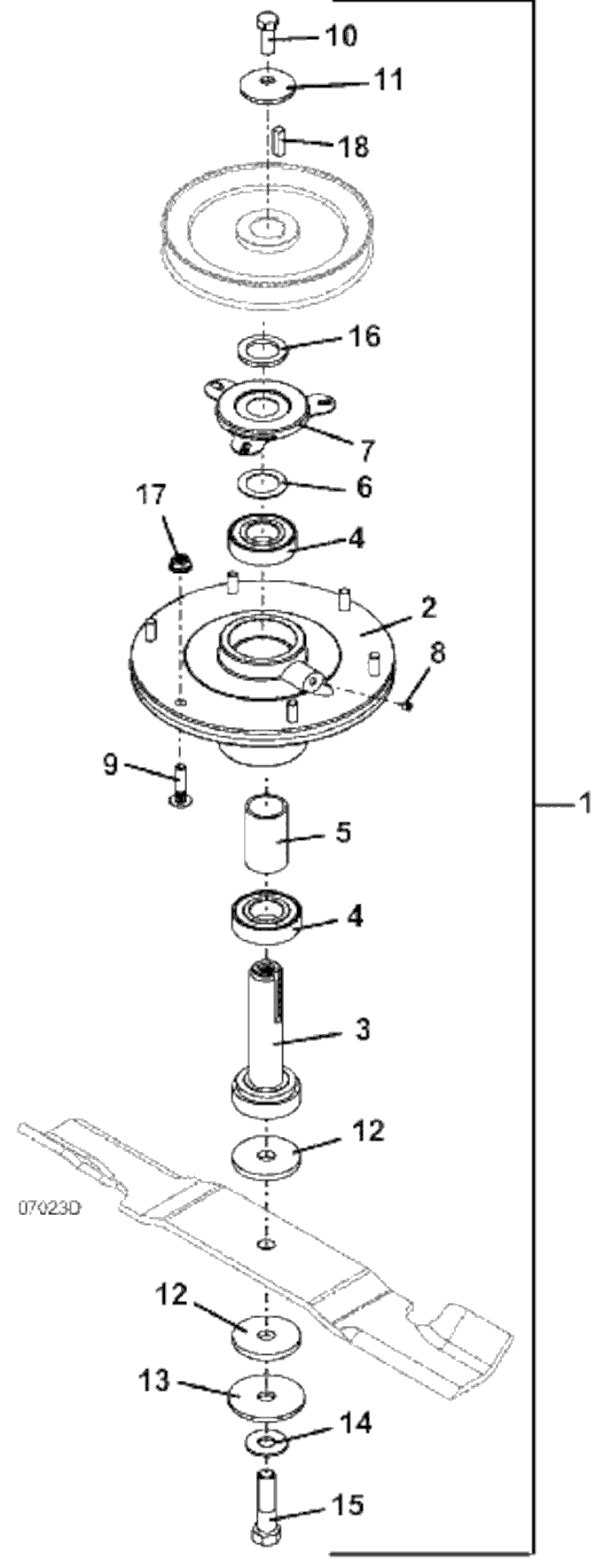

124 • Blade Spindle Assembly for 41" Decks

2019

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

M1-48 right/left Spindle Assembly

623760

2

Aluminum Spindle Housing Assembly

604412

3

25mm 4.75 Spindle Shaft Assembly

604764

4

25mm 2 Regular Seal Ball Bearing

110081

5

Shallow Spacer Bearing Spacer

903645

6

Washer

257106

7

Bearing Shield

721167

8

Set Screw

259305

9

Round Head Ribbed Neck Bolt

247141

10

Hex Bolt

243331

11

Cupped Washer

257041

12

Fiber Washer

421200

13

Washer

257061

14

Blade Spindle Hardened Washer

257057

15

Hex Bolt

243581

16

Washer

257107

17

Whiz Nut

253035

18

Square Key

281580

Return to 124 Index Return to Top
