Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

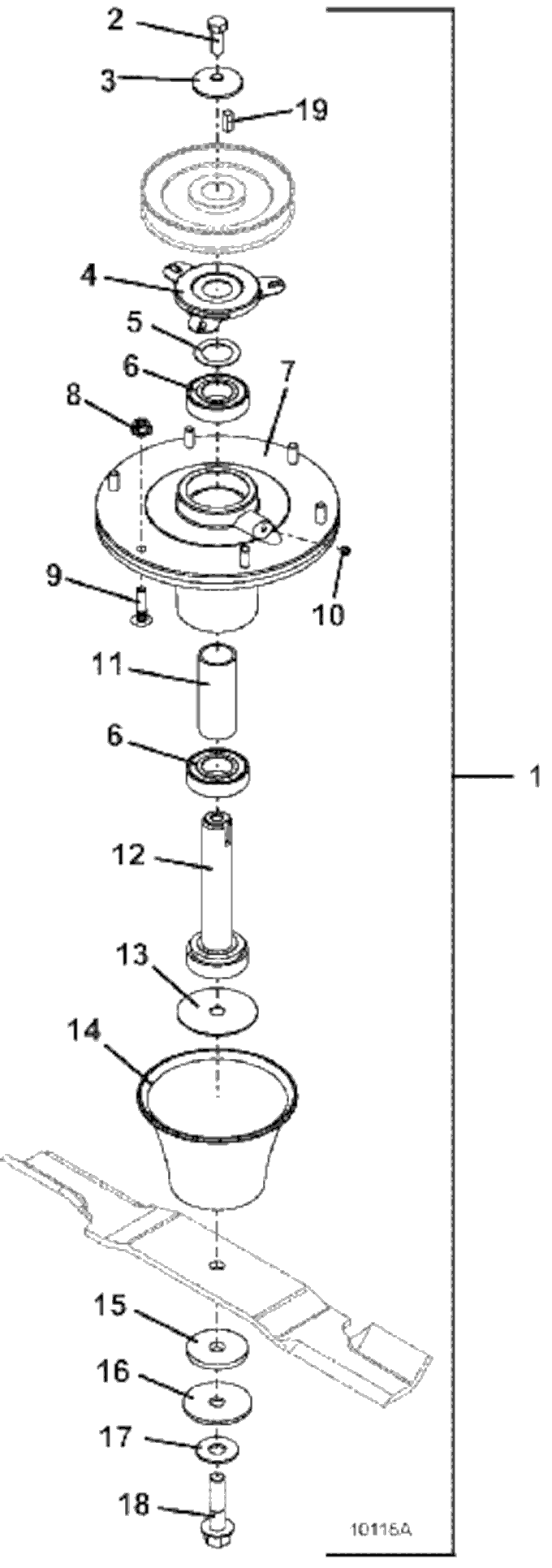

124 • Blade Spindle Assembly for 48" Deep Decks

2018

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Left/Right Multi-Function 52/61 Spindle Assembly

623750

2

Hex Bolt

243331

3

Cupped Washer

257041

4

Bearing Shield

721167

5

Washer

257106

6

Ball Bearing

110081

7

Aluminum Spindle Housing Assembly

604413

8

Whiz Nut

253035

9

Round Head Ribbed Neck Bolt

247141

10

Set Screw

259305

11

Deep Bearing Spindle Spacer

903643

12

Spindle Shaft Assembly

604775

13

Washer

257055

14

Deflector Cone

423680

15

Fiber Washer

421200

16

Washer

257061

17

Blade Spindle Hardened Washer

257057

18

Grade 8 Flange Hex Bolt

243583

19

Square Key

281580
