Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

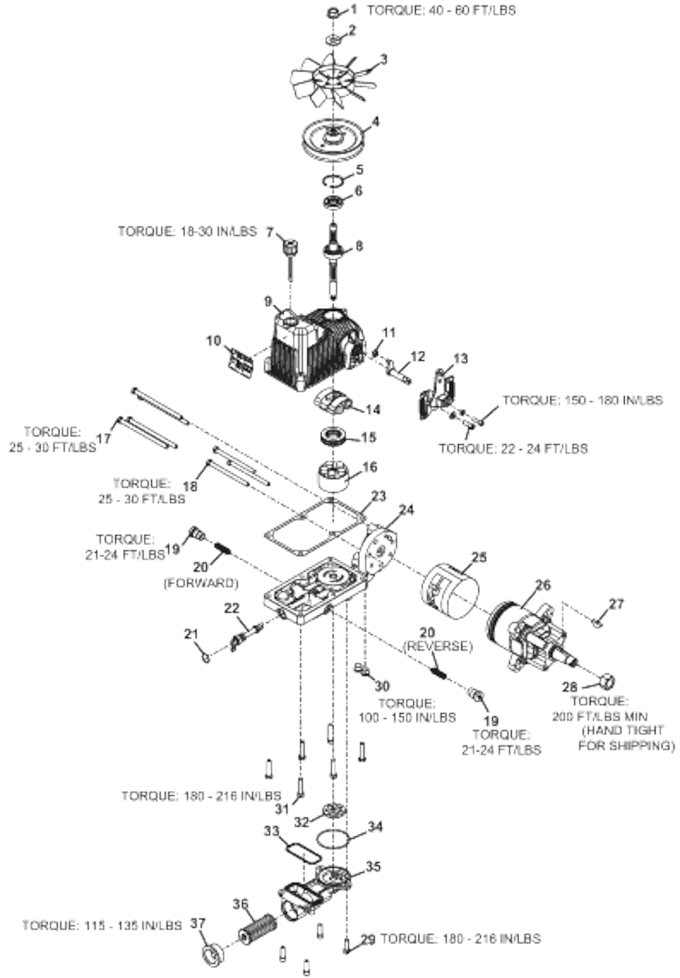

124 • - HTE Drive Assembly - Serial #6915953 & Above for 48" Deep Decks

2019

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Flanged Nut

253070

2

Fan Retainer Washer

130633

3

Hydro Fan

130431

4

Pulley

130631

5

Internal Retainer

263180

6

Input Seal

125365

7

Breather/Dipstick

130610

-

Seal Ring

130611

8

Shaft Assembly

130678

9

Left Top Housing

130660

-

Right Top Housing

130661

10

NOT AVAILABLE

000000

11

Control Block

130417

12

Trunnion Arm

130617

13

Return Assembly

130623

14

Swashblock

130415

15

Thrust Bearing

130413

16

Piston & Barrel Assembly

130452

17

NOT AVAILABLE

000000

18

NOT AVAILABLE

000000

19

NOT AVAILABLE

000000

-

O-Ring

126538

20

NOT AVAILABLE

000000

21

Retaining Ring

130649

22

One Piece Bypass Valve

130646

23

Housing Gasket

130680

24

NOT AVAILABLE

000000

25

NOT AVAILABLE

000000

26

Seal Kit

130388

27

Woodruff Key

281845

28

Lock Nut

253992

29

NOT AVAILABLE

000000

30

NOT AVAILABLE

000000

31

NOT AVAILABLE

000000

32

Gerotor Set

130428

33

O-Ring

130621

34

O-Ring Charge Cover

130620

35

Charge Pump Cover

130622

36

Filter

130605

37

Filter Plug with O-Ring

130606

-

O-Ring

126552
