Genuine OEM Grasshopper® Mower Parts Diagrams

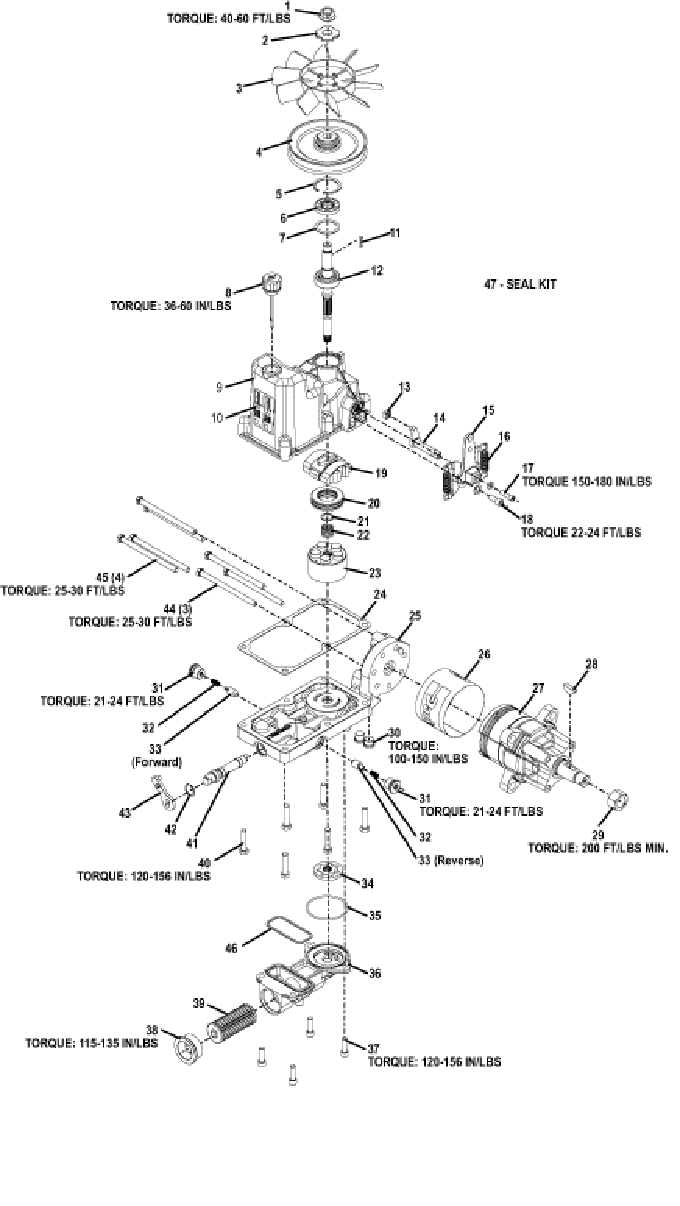

125 • HTE Drive Assembly
2016
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
Flanged Nut |
253070 |
2 |
Fan Spacer |
130632 |
3 |
Hydro Fan |
130431 |
4 |
Pulley |
130630 |
5 |
Input Seal Retaining Ring |
130405 |
6 |
Input Seal |
125365 |
7 |
Washer |
130407 |
8 |
Breather/Dipstick |
130610 |
- |
Seal Ring |
130611 |
9 |
Left Top Housing |
130660 |
9 |
Right Top Housing |
130661 |
10 |
NOT AVAILABLE |
000000 |
11 |
Square Key |
281668 |
12 |
Shaft Assembly |
130676 |
13 |
Control Block |
130417 |
14 |
Trunnion Arm |
130617 |
15 |
Control Lever |
130618 |
16 |
Return Spring |
130619 |
17 |
NOT AVAILABLE |
000000 |
18 |
NOT AVAILABLE |
000000 |
19 |
Swashblock |
130415 |
20 |
Thrust Bearing |
130413 |
21 |
Thrust Washer |
130479 |
22 |
Spring |
130473 |
23 |
Piston & Barrel Assembly |
130452 |
24 |
Housing Gasket |
130680 |
25 |
NOT AVAILABLE |
000000 |
26 |
NOT AVAILABLE |
000000 |
27 |
NOT AVAILABLE |
000000 |
28 |
Woodruff Key |
281845 |
29 |
Lock Nut |
253992 |
30 |
NOT AVAILABLE |
000000 |
31 |
NOT AVAILABLE |
000000 |
- |
O-Ring |
126538 |
32 |
NOT AVAILABLE |
000000 |
33 |
NOT AVAILABLE |
000000 |
34 |
Gerotor Set |
130428 |
35 |
Charge Cover O-Ring |
130620 |
36 |
Charge Pump Cover |
130622 |
37 |
NOT AVAILABLE |
000000 |
38 |
Filter Plug with O-Ring |
130606 |
39 |
Filter |
130605 |
40 |
NOT AVAILABLE |
000000 |
41 |
Bypass Valve Assembly |
130647 |
- |
O-Ring |
126531 |
42 |
Retaining Ring |
130649 |
43 |
Bypass Lever Kit |
130648 |
44 |
NOT AVAILABLE |
000000 |
45 |
NOT AVAILABLE |
000000 |
46 |
O-Ring |
130621 |
47 |
HTE Seal Kit |
130600 |
