Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

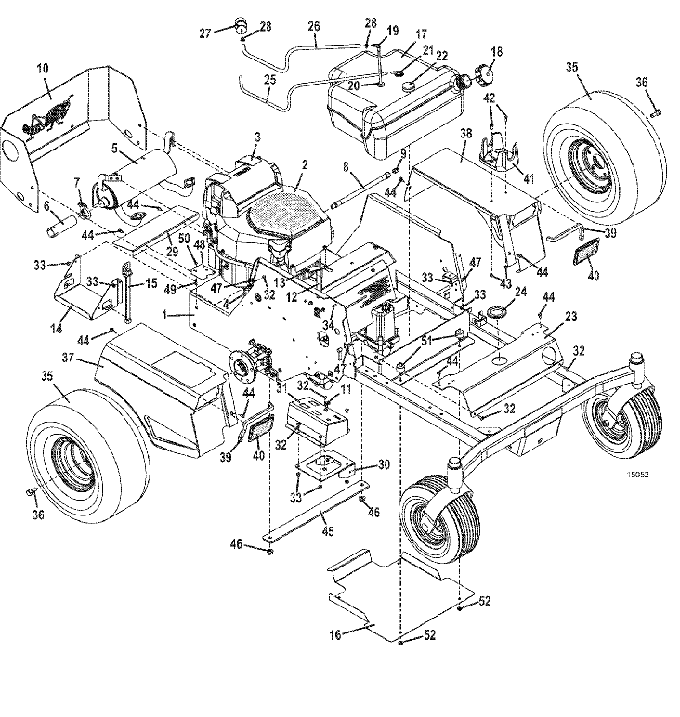

125 • Tractor Assembly 61" Serial #6176009 & Below

2017

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

100V/61 Frame

645381

2

25HP Kohler Vertical Engine

100154

3

Kohler Confidant Air Filter

100917

-

Kohler Preclean Air Filter

100916

4

Kohler Oil Filter

100802

5

25HP/Heat Shield Vertical Muffler

101214

-

Kohler Exhaust Gasket

101041

-

Heat Shield Muffler

101213

6

M2 Exhaust Pipe

942400

7

Exhaust Clamp

101356

8

Drain Hose Assembly

424319

9

Metal Pipe Plug

365515

10

Rear Guard Shield

729745

11

Mechanical Choke

142247

12

Throttle Assembly

603854

-

Control Cable Assembly

323643

-

Throttle Lever Stop

722009

-

Heavy Duty - Throttle Lever Stop

722736

13

Handle Grip

422150

14

126 Battery Mount

723062

15

Hold Down Strap

604785

16

100V Tank Shield

722930

17

Fuel Tank Assembly

605805

18

Sealed Fuel Cap with Tether

100212

19

Fuel Tube

363919

20

Fuel Tube Bushing

101875

21

2011 Fuel Tank Valve

100216

22

In Tank Fuel Gauge

141139

-

Grommet

424276

23

Front Panel

729723

24

Grommet

424294

25

Fuel Vapor Hose

821761

26

Fuel Hose

821769

27

Kohler Fuel Filter

101001

28

Hose Spring Clamp

280260

29

Heat Shield

751043

30

100 Console Bracket

644410

31

M2/200V Console

645102

32

Truss Whiz Bolt

253178

33

Whiz Nut

253025

34

Truss Whiz Bolt

253177

35

Wheel & Turf Tire

483925

-

Tire 10" Grass

482468

-

Wheel 10.00

483420

36

Lug Nut

248565

37

Right 100V Fender w/Decals

693232

38

Left 100V Fender w/Decals

693233

39

Seat Edge Trim

822631

40

Work Lamp Hole Plug

422079

41

Cup Holder

150225

42

Cap Screw

259030

43

Nut

254436

44

Hex Whiz Bolt

253173

45

Tension Strap

782898

46

Flanged Spiral Lock Nut

253067

-

Hex Bolt

243565

47

Speed Nut

254431

48

Heat Shield/Cable Mount

771015

49

Hex Whiz Bolt

253167

50

Whiz Nut

253020

51

Vibration Isolator

424074

52

Whiz Nut

253035

53

Decal Set 125

605332
