Genuine OEM Grasshopper Lawn Mower Parts

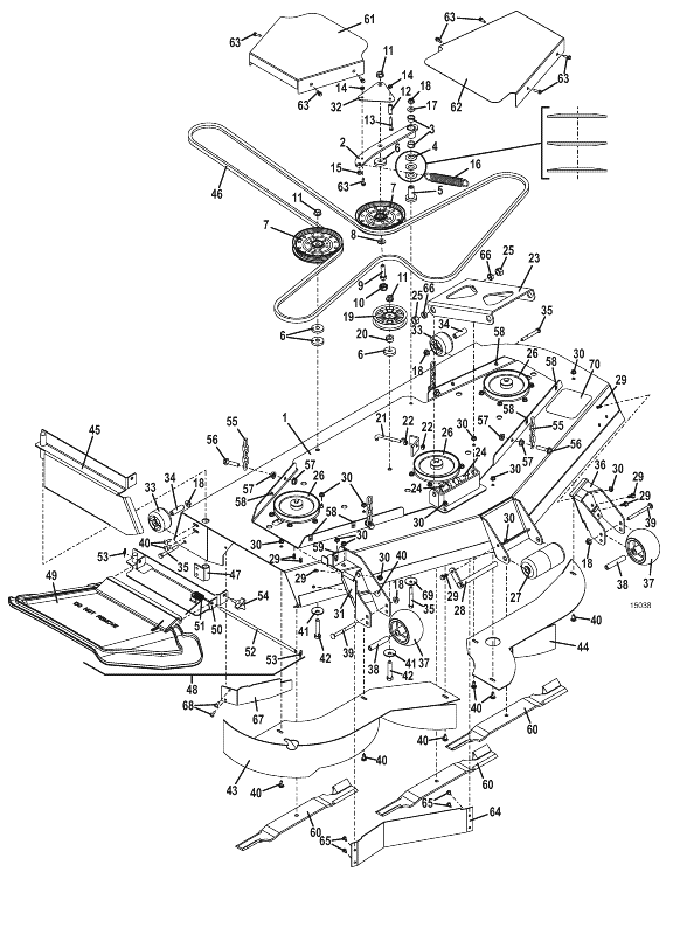

Genuine OEM Grasshopper® Mower Parts Diagrams

126 • Deck Assembly 126/61

2016

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

100V/61 Deck

645194

2

Idler Arm Assembly

824483

3

Oilite Bearing

121756

4

Spring Washer

257319

5

Pedestal Bearing

121651

6

Washer

257160

7

Idler

393250

8

Washer

257062

9

Hex Bolt

243575

10

Idler Arm Stabilizer Cap

423670

11

Flange Spiral Lock Nut

253067

12

Guide Tube

784057

13

Hex Bolt

243038

14

Whiz Nut

253025

15

Nylon Bearing

422520

16

Extension Spring

283848

17

Washer

257040

18

Whiz Nut

253043

19

Idler

393225

20

Spacer

902313

21

Idler Adjustment J Bolt

730391

22

Nut

254450

23

100V/61 Radius Arm

776218

24

Hex Bolt

243795

25

Lock Nut

253970

26

Sheave

415892

27

2-Piece Center Roller Assembly

603725

28

Roller Lock Pin

644512

29

Hex Flange Whiz Bolt

253192

30

Whiz Nut

253035

31

Right Anti-Scalp Roller Mount

645576

32

Idler Guide Bracket

723012

33

Roller

426122

34

Roller Mount Spacer

902284

35

Hex Bolt

243365

36

Left Anti-Scalp Roller Mount

645579

37

Snti-Scalp Center Hub Wheel

484230

38

Bearing Tube

942137

39

Carriage Bolt

247310

40

Carriage Bolt

247130

41

Washer

257059

42

Hex Bolt

243590

43

Right Mulch Plate

644611

44

Left Mulch Plate

644610

45

Mulch End Cap

644058

46

Belt

382099

47

Vac Housing Pivot Mount

643632

48

flex Discharge Shield Assembly

604317

49

Flex Discharge Shield

422042

50

Discharge Shield Mount

644570

51

Torsion Spring

284406

52

Flex Discharge Shield Pin

780650

53

Cotter Ring

260608

54

3-Prong Head Deck Stud (Knob)

252821

55

Lift Chain

820320

56

GR 8 Hex Bolt

243458

57

Whiz Nut

253058

58

Speed Nut

254431

59

Speed Nut

254448

60

21" High Lift Notch Blade

320245

-

18" Medium Lift Blade

320242

-

18" Contour Blade

320244

-

18" Hi-Low Mulch Blade

320247

-

21" LaserEdge Blade

320318

-

18" Shredder Blade

320322

61

Right Belt Shield

751055

62

Left Belt Shield

751056

63

Hex Whiz Bolt

253175

64

Aux Front Shroud

724589

65

Truss Whiz Bolt

253176

66

Axle Spacer

902422

67

Discharge Deflect Shroud

729687

68

Whiz Truss Bolt

253177

69

Cupped Washer

257041

70

Foot Rest Ext Tread

420904
