Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

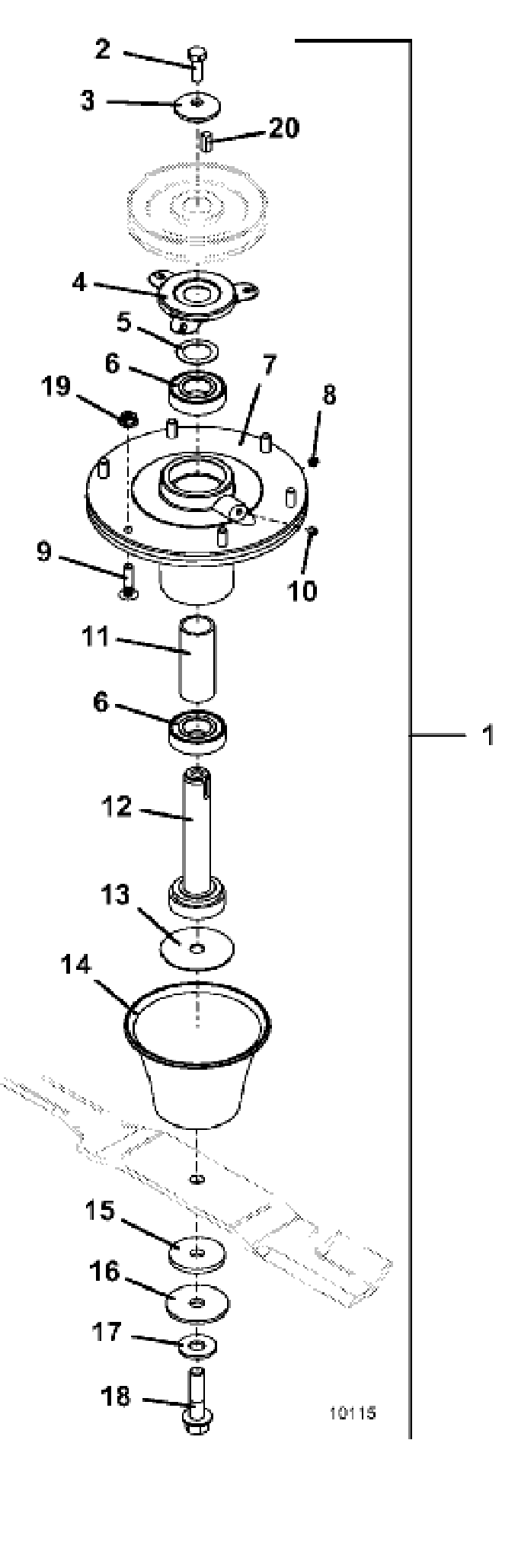

126 • Discharge Spindle Assembly for 52 61" Deck

2016

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

100/48R Spindle Assembly

623746

2

Rear Deck Spindle Housing

320520

3

25mm Ball Bearing

110081

4

Spacer

282630

5

Spindle Shaft Assembly

605774

6

Washer

257106

7

Cupped Washer

257041

8

Hex Bolt

243331

9

Fiber Washer

421200

10

Blade Counter Clockwise Mount

776151

11

Left Handed Hex Bolt

243582

12

Grassthrower

766026

13

Hex Bolt

243320

14

Lock Nut

253890

15

Square Key

281586

16

Flat Sheave

415010

17

Hex Flange Whiz Bolt

253191

Return to 126 Index Return to Top
