Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

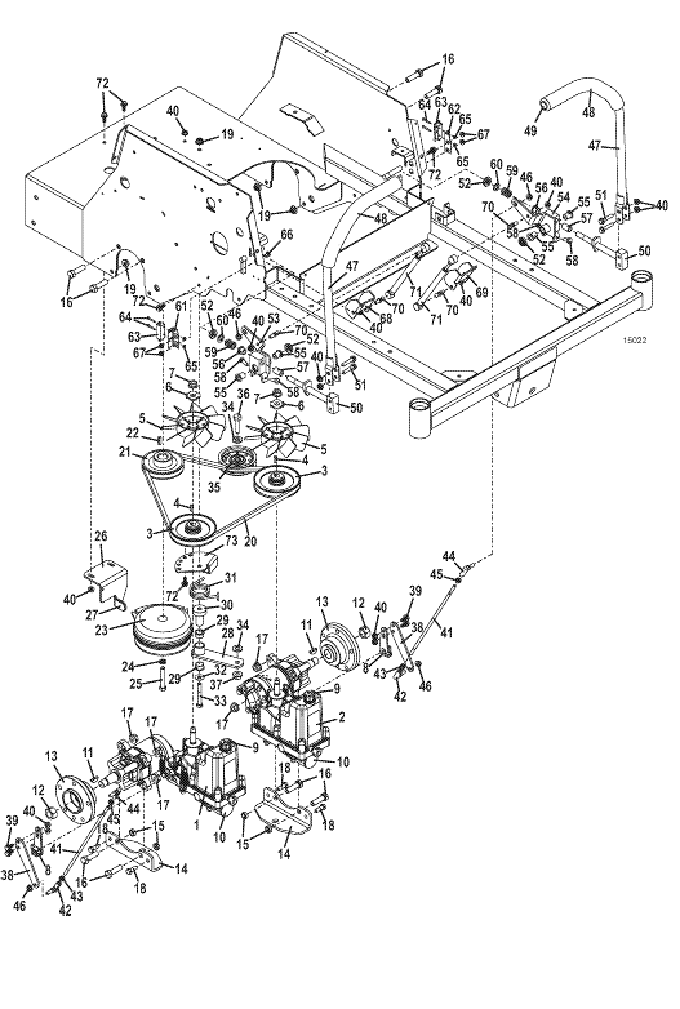

126 • Drive & Steering Assembly - M2/52 61

2016

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Right Integrated Transmission

391491

2

Left Integrated Transmission

391490

3

Pulley

130630

4

Square Key

281668

5

H2 & T Hydro Fan

130431

6

Fan Spacer

130632

7

Flanged Nut

253070

8

Control Lever

130618

-

Return Spring

130619

9

Breather/Dipstick

130610

9

Seal Ring

130611

10

Filter

130605

10

O Ring

126552

-

Filter Plug with O Ring

130606

11

Woodruff Key

281845

12

Lock Nut

253992

13

Tapered Hub

824458

-

Tapered Hub 100V/61

824459

14

Tension Strap Bracket

776156

15

Integrated Spacer

902293

16

Hex Bolt

243575

17

Flanged Spiral Lock Nut

253067

18

Flanged Whiz Bolt

253203

19

Whiz Nut

253043

20

Belt

381942

21

Sheave

415545

22

Square Key

281582

23

Electric Clutch

388750

24

Lock Washer

257422

25

Hex Bolt

243470

26

100 Anti Rotation Bracket

725123

27

Clutch Bracket Cover

422088

28

100 Pumps Idler Arm Assembly

824478

29

Oilite Bearing

121756

30

Pedestal Bearing

121650

31

Torsion Spring

284428

32

Washer

257040

33

Hex Bolt

243360

34

Washer

257062

35

Idler

393195

36

Hex Bolt

243575

37

Whiz Nut

253066

38

Neutral Return Arm

776158

39

Flanged Hex Whiz Bolt

253191

40

Whiz Nut

253035

41

Steering Linkage Rod

780175

42

Righthand Thread Ball Joint

265615

43

Nut

254441

44

Lefthand Thread Ball Joint

265616

45

Nut

254444

46

Whiz Nut

253038

47

200V Standard Steering Lever Assembly

605741

48

Handle Grip

422179

49

Vinyl Cap

422095

50

Steering Lever Ajustment Mount

643926

51

Flanged Hex Whiz Bolt

253195

52

Nylon Insert Nut

253470

53

Right Steering Pivot Assembly

604856

54

Left Steering Pivot Assembly

604857

55

Sleeve Bearing with Flange

422559

56

Sleeve Bearing with Flange

422556

57

Sleeve Bearing

422557

58

Hex Bolt

243197

59

Compression Spring

283324

60

Washer

257063

61

Right Steering Switch Mount

720160

62

Left Steering Switch Mount

720161

63

Lever Switch

183860

64

Machine Screw

250318

65

Nut

254400

66

Truss Whiz Bolt

253176

67

Whiz Nut

253025

68

Right Damper Mount Bracket

729730

69

Eccentric Roller Assembly

729731

70

Ball Stud

265680

71

Reverse Damper with Ball Socket

285032

72

Flanged Hex Whiz Bolt

253192

73

126 Belt Tensioner Bracket

729733

Return to 126 Index Return to Top
