Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

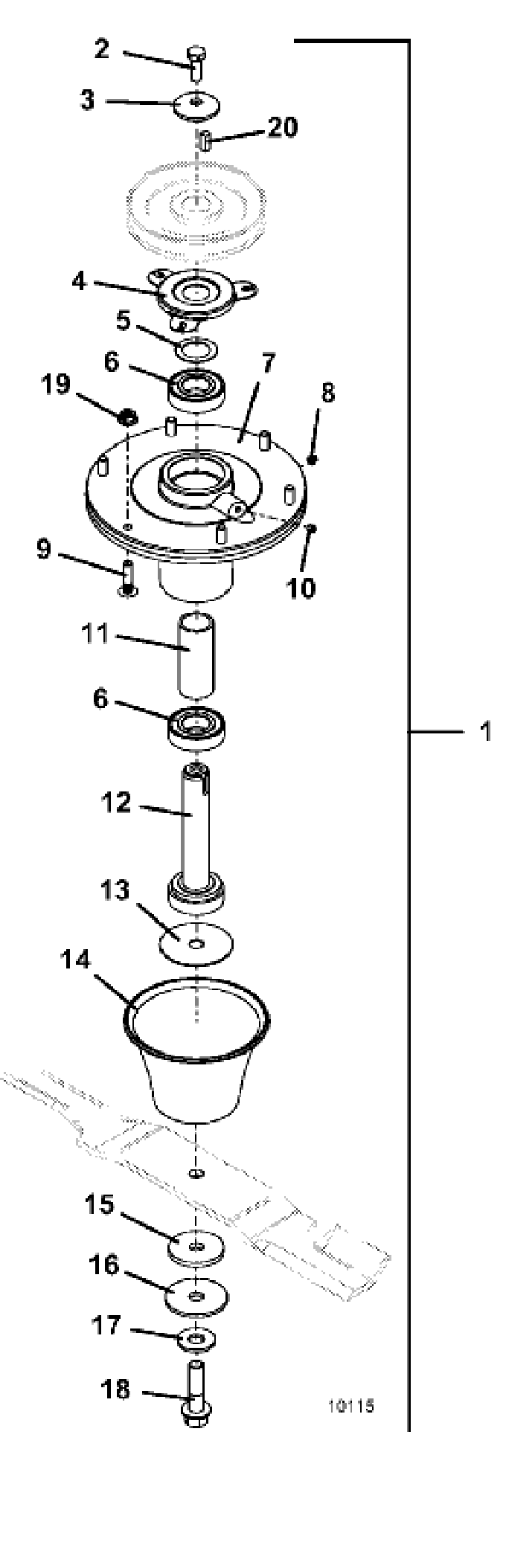

126 • Blade Spindle Assembly

2017

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

52/61 Spindle Assembly Left/Right

623750

2

Hex Bolt

243331

3

Cupped Washer

257041

4

Bearing Shield

721167

5

Washer

257106

6

25MM Regular Sealed Ball Bearing

110081

7

Aluminum Spindle Housing Assembly

604413

8

Relief Plug

280705

9

Round Head Ribbed Neck Bolt

247141

10

Set Screw

259305

11

Deep Sindle Bearing Spacer

903643

12

5.75 Spindle Shapft Assembly

604775

13

Washer

257055

14

Deflector Cone

423680

15

Fiber Washer

421200

16

Washer

257061

17

Hardened Blade Spindle Washer

257057

18

Grade 8 Flanged Hex Bolt

243583

19

Whiz Nut

253035

20

Square Key

281580
