Genuine OEM Grasshopper® Mower Parts Diagrams

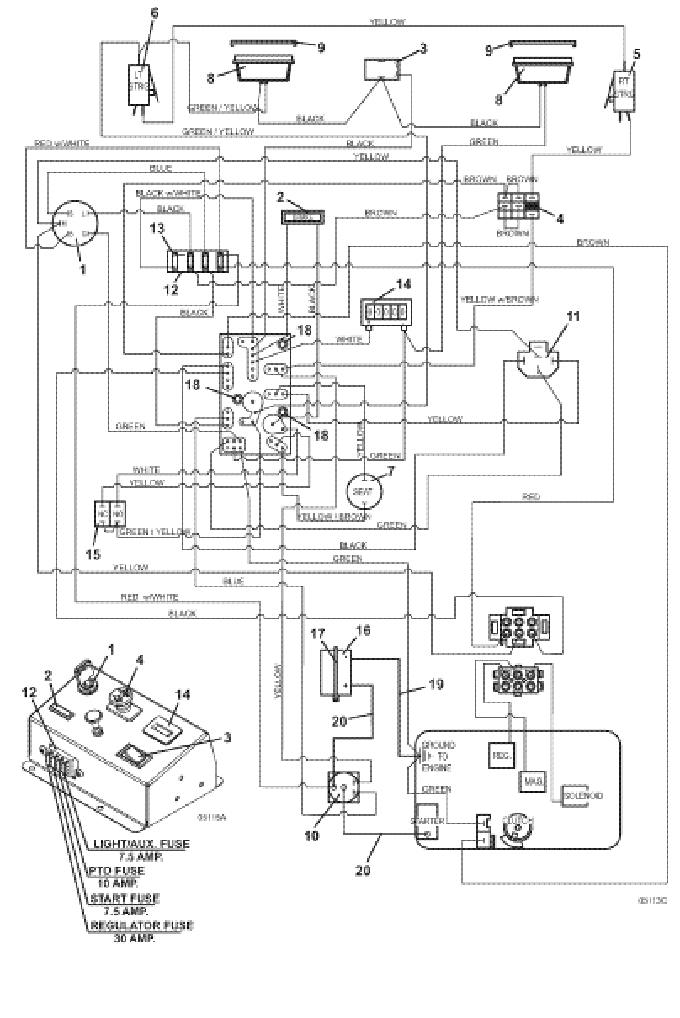

126 • Wiring & Lights
2018
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
Briggs & Stratton / Kohler Ignition Switch with Key |
183806 |
- |
Nut |
254498 |
2 |
Brake Light Indicator |
182326 |
3 |
Rocker Switch |
184179 |
4 |
Push/Pull Switch |
183925 |
5 |
Lever Switch |
183860 |
- |
Steering Switch Mount - right |
720160 |
6 |
Lever Switch |
183860 |
- |
Steering Switch Mount - left |
720161 |
7 |
Seat Switch |
183871 |
8 |
LED Flood Worklamp |
182261 |
9 |
Snap Mount Worklamp Bezel |
182251 |
10 |
Solenoid Switch 4 Post Relay |
184251 |
11 |
12V DC Relay with Mount |
184271 |
12 |
Fuse Block |
181720 |
- |
Fuse ID Decal |
162320 |
- |
Fuse Block Cover |
181721 |
13 |
30 amp Auto ATC Fuse |
181470 |
- |
7.5 Amp Auto ATC Fuse |
181460 |
- |
10 amp Auto ATC Fuse |
181462 |
14 |
Snap In Hour Meter |
141551 |
15 |
Brake Interlock Switch |
183894 |
16 |
12 Volt Battery |
180125 |
- |
Large Battery Decal |
161252 |
- |
126 Battery Mount |
723062 |
17 |
Hold Down Strap |
604785 |
18 |
PC Board Support Spacer |
423690 |
19 |
30" Black Battery Cable |
180290 |
- |
Whiz Nut |
253035 |
- |
Flanged Hex Whiz Bolt |
253193 |
20 |
Red 24" Red Battery Cable |
180322 |
- |
Battery Terminal Boot |
425216 |
- |
Starter Terminal Boot |
425220 |
22 |
124/126 Wiring Assembly |
605913 |
