Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

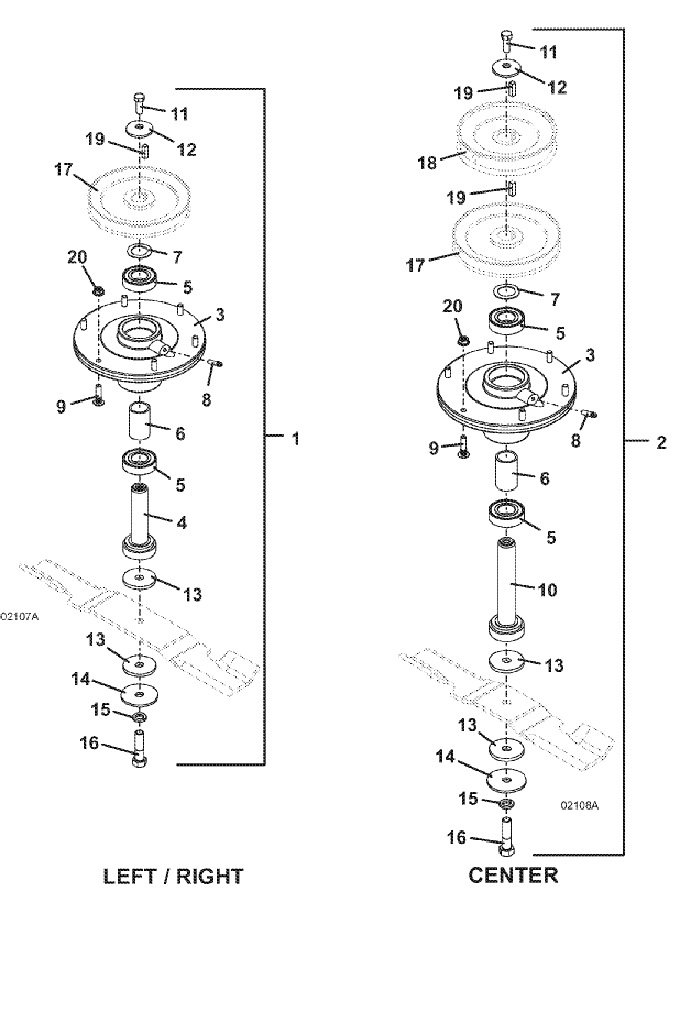

218 • Blade Spindle Assembly M148

2004

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

M1-48 right/left Spindle Assembly (includes items 3-9 & 11-16)

623760

2

M1-48 center Spindle Assembly (includes items 3 & 5-16)

623761

3

4.0 Spindle Housing Assembly

604422

4

25mm 4.75 Spindle Shaft Assembly

604764

5

Single Seal Ball Bearing

110082

6

Shallow Spacer Bearing Spacer

903645

7

Washer

257106

8

Zerk Grease Fitting

280745

9

Round Head Ribbed Neck Bolt

247141

10

25mm Spindle Shaft Assembly

604770

11

Hex Bolt

243331

12

Cupped Washer

257041

13

Fiber Washer

421200

14

Washer

257061

15

Lock Washer

257432

16

Hex Bolt

243581

17

Sheave

415892

18

Sheave

415897

19

Square Key

281582

20

Whiz Nut

253035
