Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

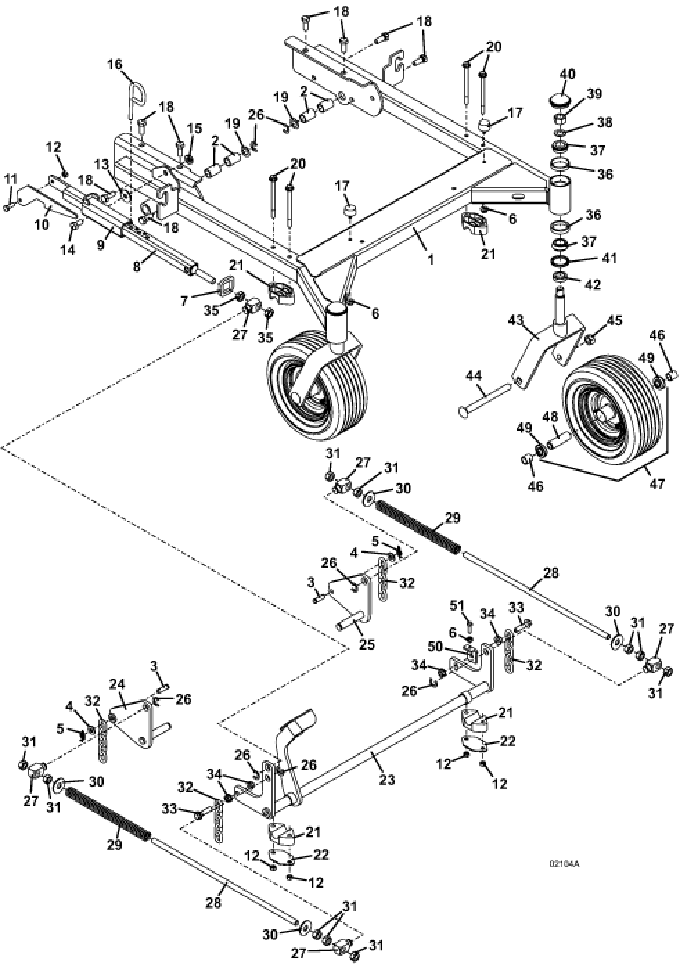

218 • Deck Carrier Assembly M148

2006

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

M-148 / M-152 Carrier without Footrest

644136

2

Oilite Bearing

121766

3

Clevis Pin

261405

4

Washer

257051

5

Cotter Ring

260612

6

Whiz Nut

253035

7

M1 Height Adjustment Spacer

423696

8

M1 Height Adjustment Tube

644778

9

Latch Tube Guide

644305

10

Deck Latch

775104

11

Hex Bolt

243330

12

Lock Nut

253890

13

Nylon Washer

821516

14

Hex Bolt

243560

15

Nylon Nut Insert

253470

16

Height Adjustment Deck Pin

730434

17

Rubber Bumper

424052

18

Hex Bolt

243565

-

Flange Spiral Lock Nut

253067

19

18 gauge Bushing Washer

257092

20

Flange Bolt

253215

21

M1 Bearing Block

423643

22

Lift Bearing Plate

774064

23

M1 Deck Lift Lever

644524

24

M1 right Rear Deck Rocker

644707

25

M1 left Rear Deck Rocker

644708

26

External Retainer

263529

27

Spring Rod Shaft Mount

882035

28

Spring Shaft

780661

29

Compression Spring

283392

30

Washer

257080

31

Nut

254490

32

M1 5 Links Chain

820331

33

GR 8 Hex Bolt

243458

34

Whiz Nut

253058

35

Nut

254493

36

Bearing Cup

123522

37

Taper Bearing

122522

38

14 gauge Bushing Washer

257091

39

Lock Nut

253992

40

Domed Dust Cap

481434

41

Seal

125855

42

Spacer

282615

43

M148 Fork & Lock Nut Assembly

604367

44

Carriage Bolt

247726

45

Lock Nut

253970

46

Axle Spacer

902425

47

13 x 5 x 6 Wheel & Tire Assembly with Bearings & Spacer

483861

-

Tubeless Ribbed Tire 13 x 5.00 x 6

482350

-

6 x 3.25 TN Wheel Wheel with Bearing & Spacer

483301

48

Rear Wheel Bearing Axle Spacer

902475

49

Ball Bearing

120050

50

M1 Deck Adjusting Strap

732586

51

Hex Bolt

243205
