Genuine OEM Grasshopper® Mower Parts Diagrams

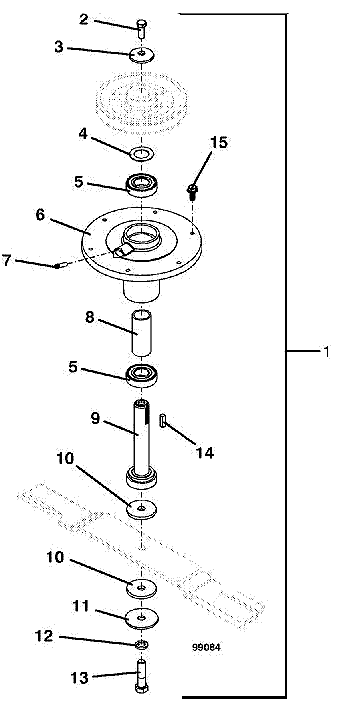

220 / 225 • Blade Spindle Assembly - M152 / M161
serial numbers 498725 - 5112233
2000 & 2001
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
Spindle Assembly, left & right (includes items 3-15) |
623786 |
- |
Spindle Assembly, center (includes items 3-9 & 11-16) |
623787 |
2 |
Hex Bolt .375-24 x 1 |
243331 |
3 |
Cupped Washer |
257041 |
4 |
Washer |
257106 |
5 |
Ball Bearing 25mm |
110082 |
6 |
Spindle Housing |
824151 |
7 |
Grease Fitting 1/4-28 x 1.125 |
280745 |
8 |
Deep Spindle Bearing Spacer |
903643 |
9 |
Spindle - Shaft Assembly M1 left/right |
604769 |
- |
Spindle Shaft Assembly |
604733 |
10 |
Fiber Washer |
421200 |
11 |
Washer |
257061 |
12 |
Lock Washer |
257432 |
13 |
Hex Bolt .500-20 x 2 |
243581 |
14 |
Square Key .250 x .875 |
281582 |
15 |
Hex Flange Whiz Bolt .312-18 x .75 |
253192 |
